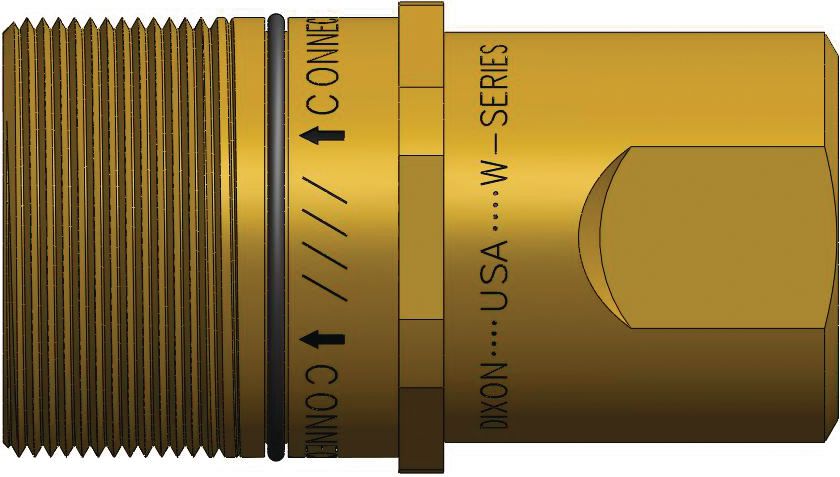

Hydraulic Quick Connect Nipple, Brass, Wing Style, 1" x 1-11-1/2, Female NPTF, 3.55" Length, 3000PSI
(Pack of
1)
SKU:20978 Item#: 20978
• Provides no-spill connections between trucks/tractors and trailers
• Threaded wing or hex sleeves enable easy connection and disconnection under pressure
• O-ring on nipple provides “good connection” indicator and keeps contaminants out of threads when connected
• Coupler has a high-flow tubular valve designed to reduce pressure drop and turbulence, and improve flow performance
• Flanged bonded valve seal in coupler prolongs coupling life and is integral in the reduction of spillage and air inclusion
Dixon: Series W
Parker: 6100 Series
Aeroquip: 5100 Series
Snap-Tite: Series 78
Faster: Series FB
Frequently Bought Together
Z Series/1A Series Crimp-On Hose End 1/2" x 1/2-14
Couldn't load pickup availability
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Cap Nut, 1-5/16-12"(16) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Hydraulic Dust Cap for Coupler PVC/Rubber 1/2"
Couldn't load pickup availability
1/2" ISO-FF COUPL, 3/4"-16 ORB, STE
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 1-11-1/2
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Product Description
• Provides no-spill connections between trucks/tractors and trailers• Threaded wing or hex sleeves enable easy connection and disconnection under pressure
• O-ring on nipple provides “good connection” indicator and keeps contaminants out of threads when connected
• Coupler has a high-flow tubular valve designed to reduce pressure drop and turbulence, and improve flow performance
• Flanged bonded valve seal in coupler prolongs coupling life and is integral in the reduction of spillage and air inclusion
Dixon: Series W
Parker: 6100 Series
Aeroquip: 5100 Series
Snap-Tite: Series 78
Faster: Series FB
Technical Specifications
| Item#: | 20978 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Wing Style |
| Body Size | 1 " |
| Thread Size | 1-11-1/2 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,100 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Brass |
| Locking Mechanism | Threaded |
| Flow | 40 gal/min |
| Length | 3.55 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 3,000 PSI |
| Hex Size | 1-9/16 " |
| Maximum Diameter | 2 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 1.45 lb |
