Hydraulic Quick Connect Nipple, Steel, ISO 7241 Series 'B', 1" x 1-11-1/2, Female NPTF, 2.6" Length, 4000PSI
(Pack of
1)
These high-performance products are easy to connect and disconnect, and are best for use with high-pressure hose, and hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Manufactured of high-grade alloy steel, they meet the most rugged performance standards. Corrosion-resistant and case-hardened for long life and outstanding performance and have automatic check valves that result in zero loss of line content when coupling and uncoupling.
• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• Excellent flow characteristics and little pressure drop
• Double O-rings for double wear and double safety
• Stainless steel springs
• Specially tested to the most rugged industry standards
Dixon: H-Series
Parker: 60 Series
Snap-tite: 72 Series
Faster: Series HNV
Hansen: HK Series
Pounds per square inch at gauge (actual reading)
Frequently Bought Together
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Couldn't load pickup availability
Hydraulic Hose Protector 6 x 3" Yellow
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability

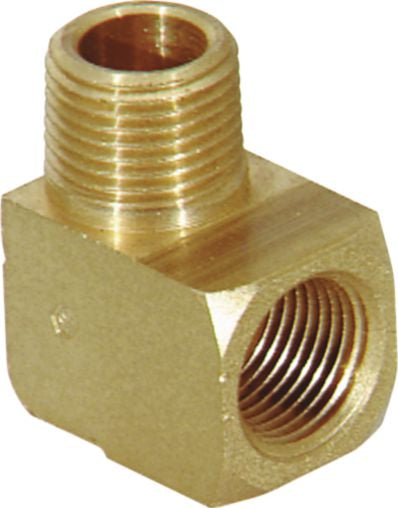

DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
1/2' ISO-A NIPPLE, 3/4"-16 ORB, STE
Couldn't load pickup availability

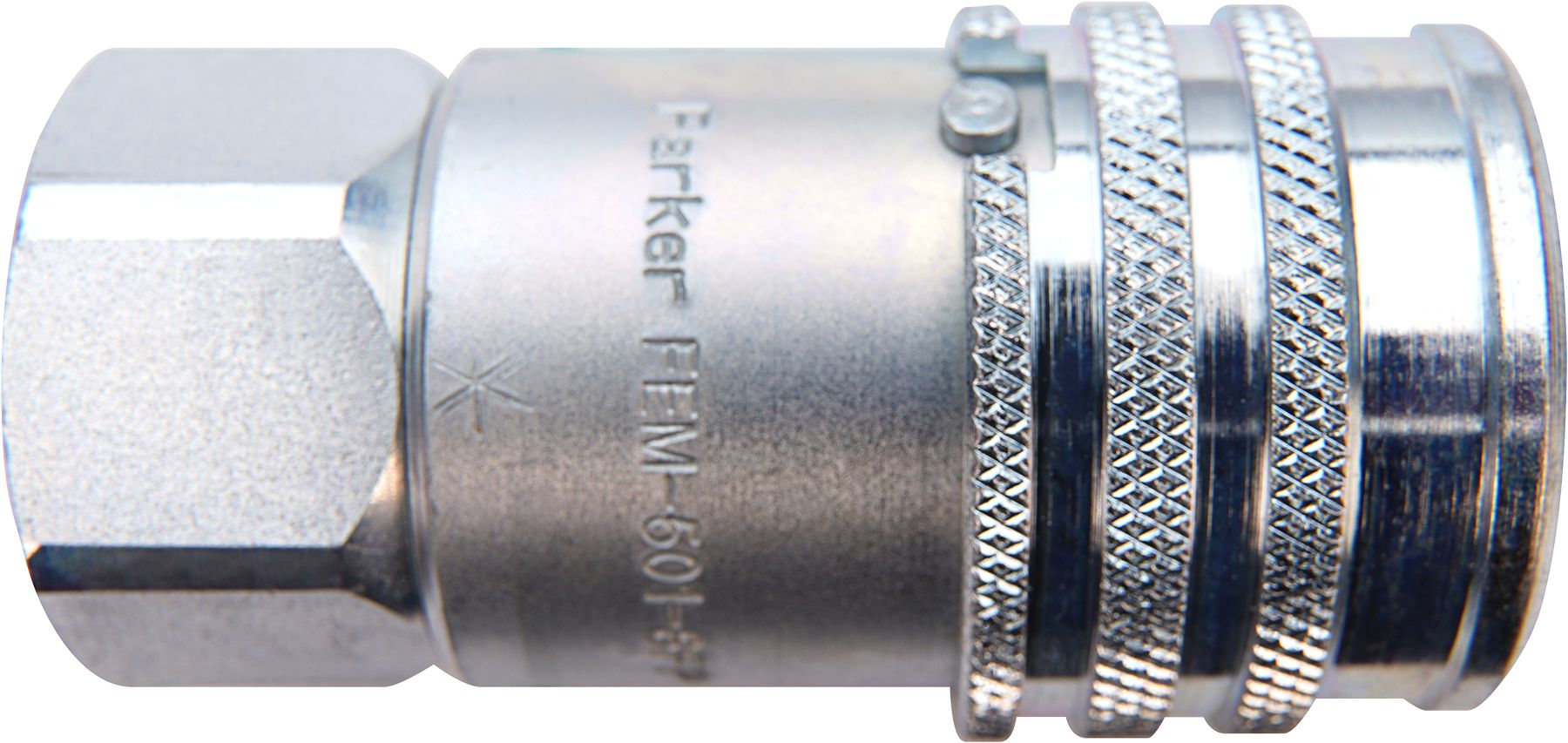

Hydraulic Quick Connect Coupler 1/2" x 1/2-14
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Product Description
These high-performance products are easy to connect and disconnect, and are best for use with high-pressure hose, and hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Manufactured of high-grade alloy steel, they meet the most rugged performance standards. Corrosion-resistant and case-hardened for long life and outstanding performance and have automatic check valves that result in zero loss of line content when coupling and uncoupling.• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• Excellent flow characteristics and little pressure drop
• Double O-rings for double wear and double safety
• Stainless steel springs
• Specially tested to the most rugged industry standards
Dixon: H-Series
Parker: 60 Series
Snap-tite: 72 Series
Faster: Series HNV
Hansen: HK Series
Pounds per square inch at gauge (actual reading)
Technical Specifications
| Item#: | 11999 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | ISO 7241 Series 'B' |
| Standards | ANSI/NFPA B93.113M-B |
| Body Size | 1 " |
| Thread Size | 1-11-1/2 |
| Thread Style | Female NPTF |
| Burst Pressure | 11,600 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | 12 Balls |
| Flow | 50 gal/min |
| Length | 2.60 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 4,000 PSI |
| Hex Size | 1.61 " |
| Maximum Diameter | 1.76 " |
| Coupled Length | 5.24 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.8 lb |
