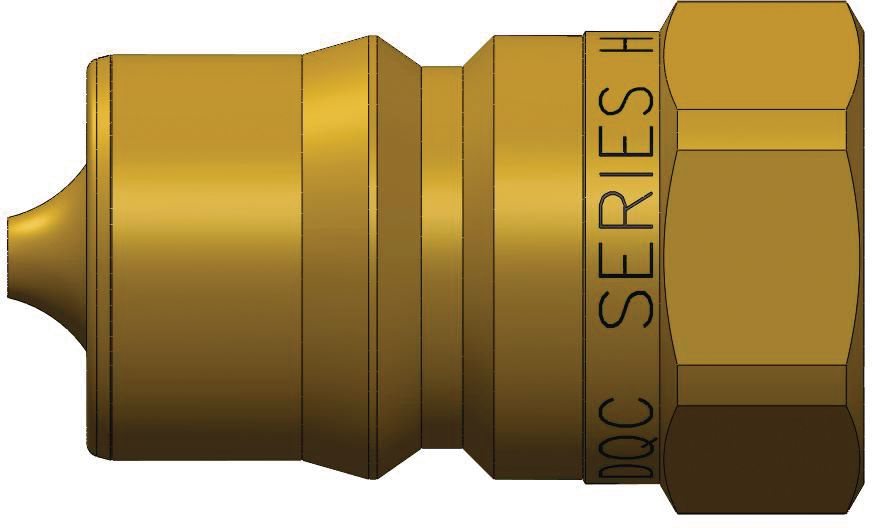

Hydraulic Quick Coupling Nipple ISO 7241 Series 'B' 3/4x 3/4-14 Female NPTF
(Pack of
1)
SKU:21013 Item#: 21013
• Flanged sleeves are designed for ease of operation while wearing gloves• EPDM steam seals formulated to withstand continuous steam service• Brass couplers have a redundant O-ring to maximize service life and provide additional sealing capacity• Warning: Do not disconnect steam couplings while under pressure!
• Fully compliant with ISO 7241 Series B • Temperature range: –40°F to +400°F (–40°C to + 204°C)
Dixon: Series HSParker: 60 SeriesHansen: HK-Series
Frequently Bought Together
Product Description
• Flanged sleeves are designed for ease of operation while wearing gloves• EPDM steam seals formulated to withstand continuous steam service• Brass couplers have a redundant O-ring to maximize service life and provide additional sealing capacity• Warning: Do not disconnect steam couplings while under pressure!• Fully compliant with ISO 7241 Series B • Temperature range: –40°F to +400°F (–40°C to + 204°C)
Dixon: Series HSParker: 60 SeriesHansen: HK-Series
Technical Specifications
| Item#: | 21013 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | ISO 7241 Series 'B' Steam |
| Standards | ANSI/NFPA B93.113M-B |
| Body Size | 3/4 " |
| Thread Size | 3/4-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 9,280 PSI |
| Seal Material | EPDM |
| Material | Brass |
| Flow | 567 lb/h |
| Length | 2.41 " |
| Temperature Range | -70 to 400 F |
| Working Pressure | 200 PSI |
| Hex Size | 1-5/16 " |
| Maximum Diameter | 1.44 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.49 lb |
