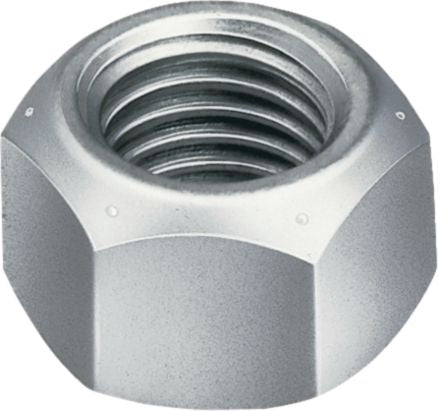

IFI 100/107 Top Locknut Grade C 7/16-14
(Pack of
50.0)
• Heat-treated for matched strength
• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.
Couldn't load pickup availability
Frequently Bought Together
Hex Nut Grade 8 Steel 5/16-18
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 1"
Couldn't load pickup availability
Flange Locknut Grade 8 Alloy Steel 3/4-10
Couldn't load pickup availability
DIN 985 Locknut with Nylon Insert Grade 8 M10-1.5
Couldn't load pickup availability
Flange Locknut Grade 8 Alloy Steel 5/8-18
Couldn't load pickup availability
Locknut with Nylon Insert 18-8 SS 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Steel M5-0.8
Couldn't load pickup availability
Hex Nut Grade 10 Alloy Steel M8-1.25
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Product Description
• Heat-treated for matched strength• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.
Technical Specifications
| Item#: | 80930 |
|---|---|
| Diameter | 7/16 " |
| Thread Pitch | 14 |
| Grade | C |
| Finish | Zinc/Wax |
| Type | Top Lock Nut |
| Material | Alloy Steel |
| Thickness | 0.463 " |
| Across Flats | 11/16 " |
| Thread | Coarse |
| Size | 7/16-14 |
| Specifications | IFI 100/107 |
| Maximum Temperature | 450º F |
| Proof | 150,000 PSI |
| UNSPSC #: | 31161716 |
| TAA Compliant: | No |
| Weight: | 1.37 lb |
