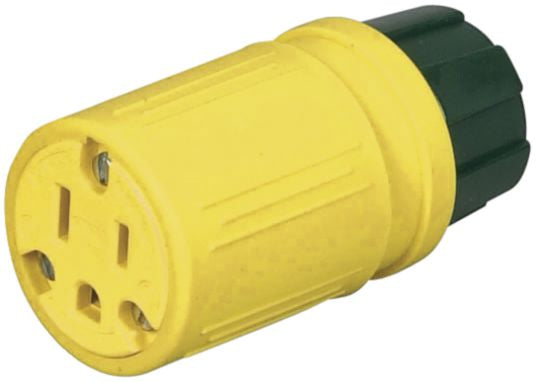

Industrial Duty SAF-T Connect Connector, 15 Amps, 125 Volts, Yellow, 0.33 to 0.64" Cord Diameter, NEMA 5-15R
(Pack of
6)
SKU:P52079 Item#: P52079
• High-quality plugs and connectors resist high impact, crushing and repeated connects and disconnects
• Durable outer rubber casing absorbs shock
• Hard nylon inner body helps protect connections
• Reversible jacket allows for splash-resistant connections
• Internal and external cord clamps help seal out moisture
• Dead-front design – no wire clamping screws are exposed on the front of the plug or connector
• Back-wired design – each wire has its own wiring chamber to keep it isolated from the others
• Transparent backplate allows for visual inspection of the connections
• All parts are keyed for quick and easy assembly
• NEMA standard blade patterns can be used with existing receptacles
• Outer casing is colored OSHA Yellow for visibility
• Four color-coded bushings for use with multiple cord sizes – 18/3 to 10/3
• Interchangeable male and female casings
• For use on cord diameters 0.330" to 0.640"
Frequently Bought Together
ATO/ATC Fuse 20A Yellow
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
Weather Protected Connector Boot 2 Pole 3 Wire 30A
Couldn't load pickup availability
Industrial Duty Plug 20A 125V L5-20P
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Universal School Bus Switch SPST 36VDC
Couldn't load pickup availability
Toggle Switch SPST 50A 6V Off-On
Couldn't load pickup availability
Universal Toggle Switch SPST 6A 125V On-Off
Couldn't load pickup availability
Product Description
• High-quality plugs and connectors resist high impact, crushing and repeated connects and disconnects• Durable outer rubber casing absorbs shock
• Hard nylon inner body helps protect connections
• Reversible jacket allows for splash-resistant connections
• Internal and external cord clamps help seal out moisture
• Dead-front design – no wire clamping screws are exposed on the front of the plug or connector
• Back-wired design – each wire has its own wiring chamber to keep it isolated from the others
• Transparent backplate allows for visual inspection of the connections
• All parts are keyed for quick and easy assembly
• NEMA standard blade patterns can be used with existing receptacles
• Outer casing is colored OSHA Yellow for visibility
• Four color-coded bushings for use with multiple cord sizes – 18/3 to 10/3
• Interchangeable male and female casings
• For use on cord diameters 0.330" to 0.640"
Technical Specifications
| Item#: | P52079 |
|---|---|
| Style | Saf-T-Connect Plugs and Connectors |
| Volts | 125 |
| Description | Connector |
| NEMA Configuration | 5-15R |
| Cord Diameter | 0.330 - 0.640 " |
| Color | Yellow |
| Approvals | UL, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 1.68 lb |
Product Restrictions
