Inline 1-Way Flow Control Regulator 12 x 12mm
(Pack of
1)
In-Line Flow Control Regulators can be easily added to existing circuitry. Simply splice it into the cylinder port line. They may be used individually or, they may be stacked together using two joining clips, supplied with each valve. Panel mounting is accomplished by using the through holes in the molded body. Adjustment CharacteristicsControl is achieved gradually due to the extreme sensitivity of the adjustment screw, which allows exceptionally fine setting levels. With the use of a locking nut, the in-line flow control may be secured in its final setting. Settings are maintained even under adverse conditions such as vibration. A captive adjustment screw prevents loss or dangerous blow out. Full Flow In Both Directions Intake capacity is always slightly greater than the full open exhaust capacity, enabling maximum variation of speeds between outward and return strokes. Designed To Be VersatileLegris in-line flow controls are unidirectional flow control valves. Intake air flows freely through the flow control; exhaust air is metered out through a specially designed adjustment screw. An arrow on the body of the valve indicates the direction of controlled flow.
• Working temperature: 30°F to +160°F
• Working pressure: 15 to 145 PSI
• Sutable fluids: Compressed air
• Construction:
– Body: Glass-reinforced nylon 6.6 or brass
– Gripping ring: Stainless steel
– Adjustment screw: Nickel-plated brass
– Locking nut: Nickel-plated brass
– Base: Nickel-plated brass with thread sealant on tapered components
Photos are representations of product.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Pipe Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Merchant Coupling Steel 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/4-18 x 1/4-18
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Push-to-Connect Union Elbow Nylon 3/8 x 3/8"
Couldn't load pickup availability

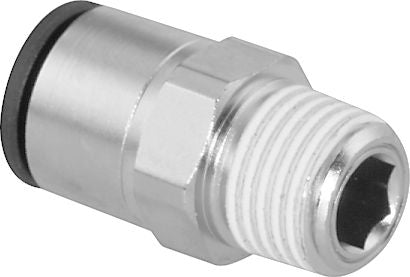

Push-to-Connect Connector Brass 10mm x 1/4"
Couldn't load pickup availability

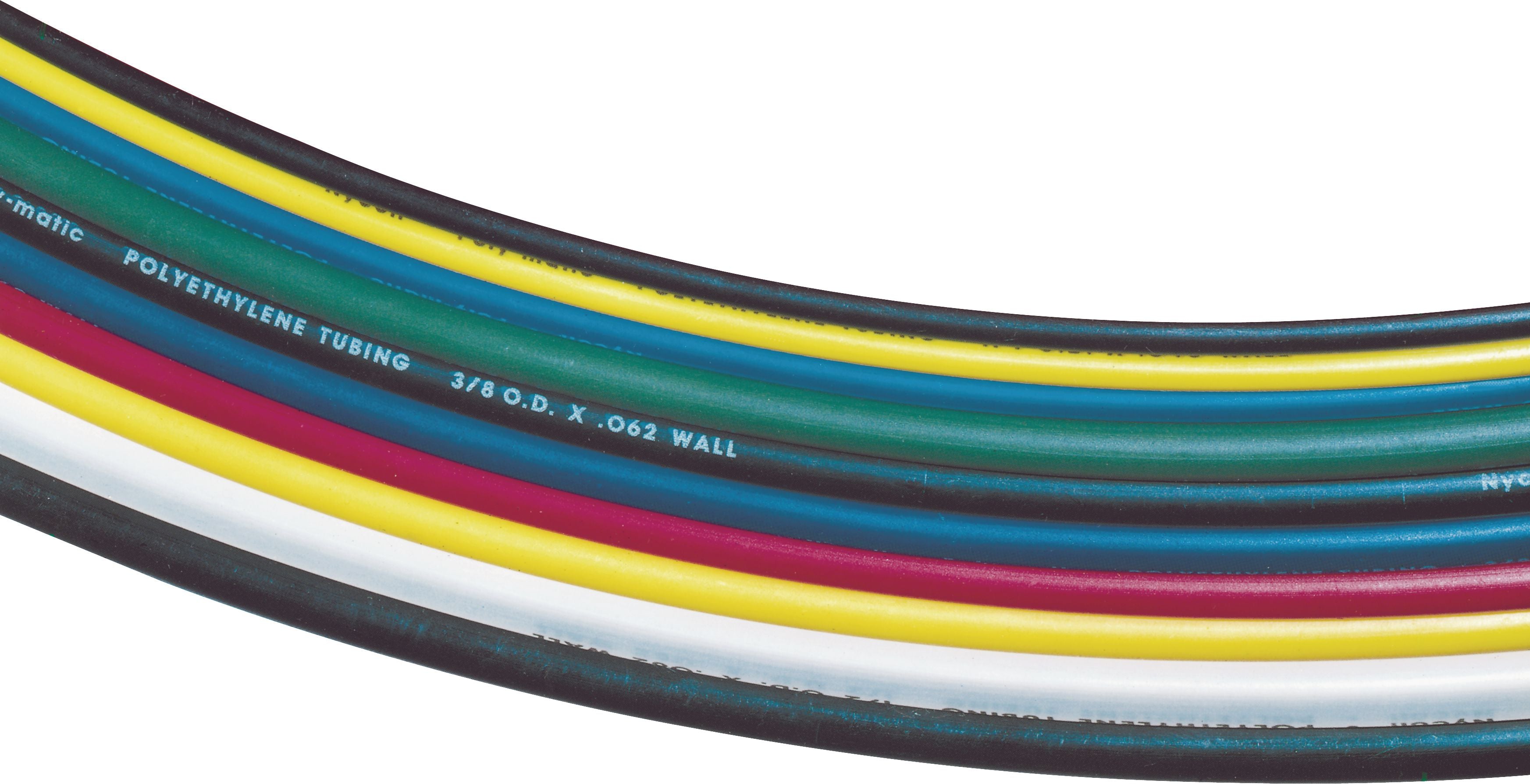

Polyethylene Tubing 5/16" OD x 100' Natural
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Product Description
In-Line Flow Control Regulators can be easily added to existing circuitry. Simply splice it into the cylinder port line. They may be used individually or, they may be stacked together using two joining clips, supplied with each valve. Panel mounting is accomplished by using the through holes in the molded body. Adjustment CharacteristicsControl is achieved gradually due to the extreme sensitivity of the adjustment screw, which allows exceptionally fine setting levels. With the use of a locking nut, the in-line flow control may be secured in its final setting. Settings are maintained even under adverse conditions such as vibration. A captive adjustment screw prevents loss or dangerous blow out. Full Flow In Both Directions Intake capacity is always slightly greater than the full open exhaust capacity, enabling maximum variation of speeds between outward and return strokes. Designed To Be VersatileLegris in-line flow controls are unidirectional flow control valves. Intake air flows freely through the flow control; exhaust air is metered out through a specially designed adjustment screw. An arrow on the body of the valve indicates the direction of controlled flow.• Working temperature: 30°F to +160°F
• Working pressure: 15 to 145 PSI
• Sutable fluids: Compressed air
• Construction:
– Body: Glass-reinforced nylon 6.6 or brass
– Gripping ring: Stainless steel
– Adjustment screw: Nickel-plated brass
– Locking nut: Nickel-plated brass
– Base: Nickel-plated brass with thread sealant on tapered components
Photos are representations of product.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 62253 |
|---|---|
| Style | Flow Control Regulator |
| Configuration | In-Line One-Way |
| Tube Size | 12 mm |
| Material | Nylon |
| Wrench Size | 14 mm |
| Working Pressure | 15 to 145 PSI |
| Temperature Range | 30 to 160 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.32 lb |
