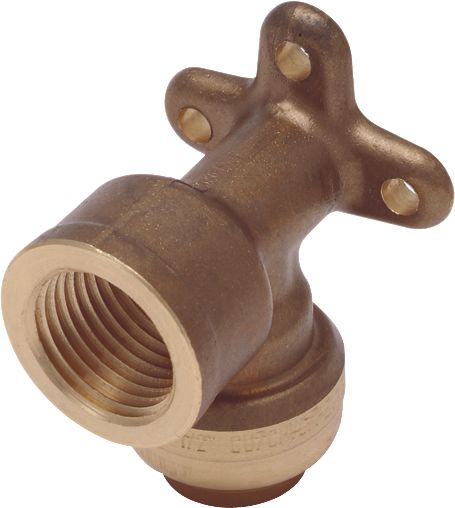

Instant Plumbing Drop Ear Elbow 90°, Brass, 3/4 x 3/4", Push-Fit
(Pack of
1)
SKU:18334 Item#: 18334
• The fastest, easiest way to join copper pipe, CPVC or PEX tubing in any combination for a great alternative to copper sweat fittings
• Installs in seconds; no special tools required – simply deburr pipe O.D. and insert into fitting
• No heat required, reducing the risk of fire and smoke damage
• No solder, flux, cement or glue required
• Swivels for easy positioning
• Removable and reusable
• Compatible with copper pipe (Types L, M and N), CPVC and PEX tubing (remove white tubing liner for copper and CPVC)
• Certified to ANSI/NSF-61 and ASSE 1061 product standards for use in potable water and hydronic heating water distribution
• Approved for use underground and behind walls without access panels
Frequently Bought Together
Pipe Bushing Brass 1/4-18 x 1/8-27
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27
Couldn't load pickup availability
Merchant Coupling Steel 1/4-18 x 1/4-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Instant Plumbing Reducer 1/2 x 1"
Couldn't load pickup availability
Lead Free Instant Straight Coupling 3/8 x 3/8"
Couldn't load pickup availability
Lead Free Instant Union Tee 1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 7/16-14
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/8-27
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 7/16-14
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/8-27
Couldn't load pickup availability
Product Description
• The fastest, easiest way to join copper pipe, CPVC or PEX tubing in any combination for a great alternative to copper sweat fittings• Installs in seconds; no special tools required – simply deburr pipe O.D. and insert into fitting
• No heat required, reducing the risk of fire and smoke damage
• No solder, flux, cement or glue required
• Swivels for easy positioning
• Removable and reusable
• Compatible with copper pipe (Types L, M and N), CPVC and PEX tubing (remove white tubing liner for copper and CPVC)
• Certified to ANSI/NSF-61 and ASSE 1061 product standards for use in potable water and hydronic heating water distribution
• Approved for use underground and behind walls without access panels
Technical Specifications
| Item#: | 18334 |
|---|---|
| Manufacturer Model #: | U340 |
| Type | Instant Plumbing Fitting |
| Configuration | Drop Ear Elbow |
| Material | Brass |
| Thread Style | Female NPT |
| Thread Size | 3/4-14 |
| UNSPSC #: | 40140000 |
| TAA Compliant: | Yes |
| Weight: | 0.41 lb |
Product Restrictions
