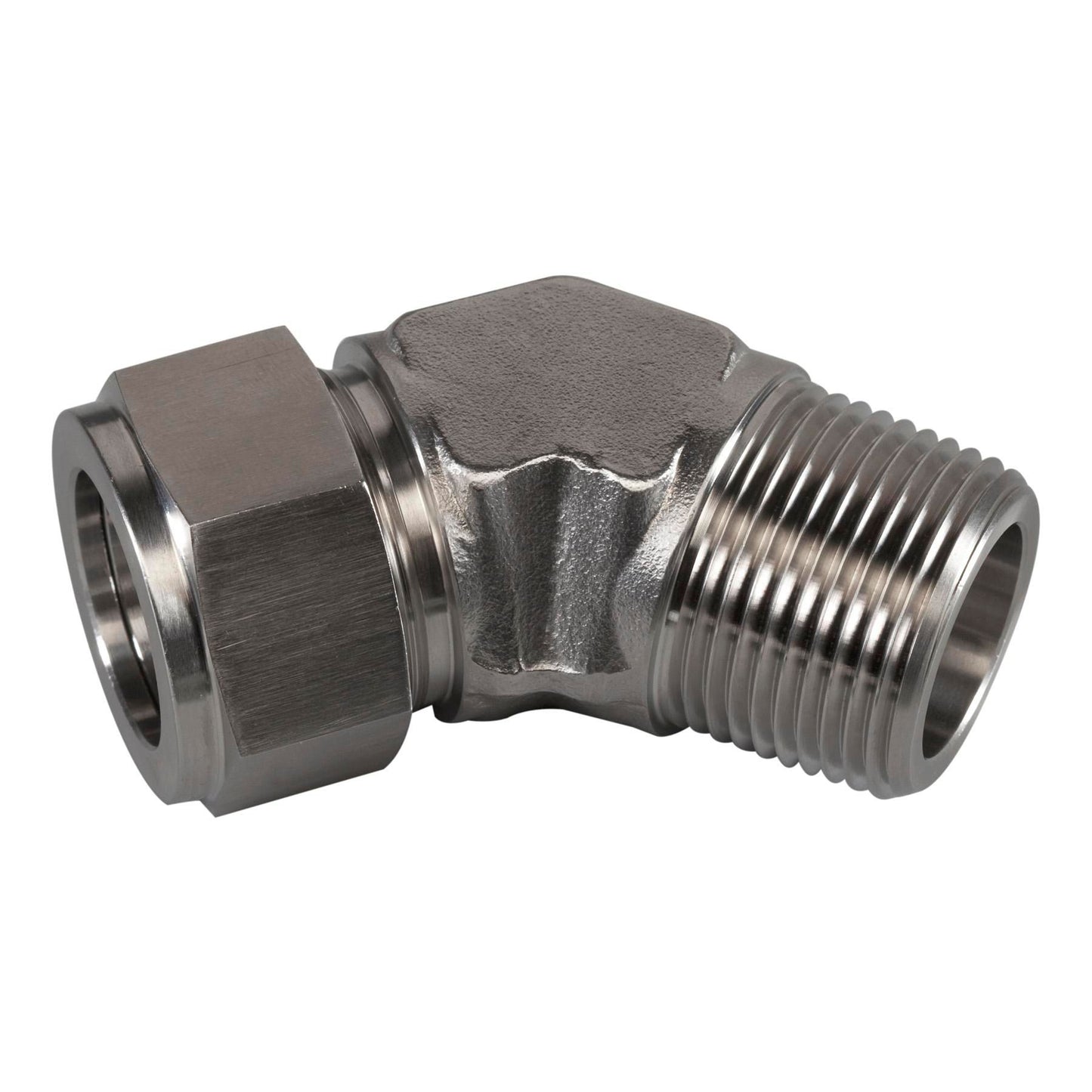

Instrumentation Elbow, 45°, Stainless Steel, 1/4 x 1/8", Tube x Male NPT
(Pack of 1)

Item#: 1343405

Lawson Products

• Precision tube fittings for the most demanding process control and instrumentation applications• Positive leak-free seal after repeated assembly • Heat code traceability on 316 Stainless Steel • Fully interchangeable with Swagelok® • Double ferrule design
• Manufactured to ANSI B31.1 and B31.3 Standards

Read More

Frequently Bought Together


Hose Barb Brass 1/2" x 3/8-18

Item#: 96862

Water Line Coupling Brass 3/4"

Item#: 98954

Hose End Brass 1/4 x 1/4"

Item#: 82518

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 57505

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

Instrumentation Connector 3/8 x 1/4"

Item#: 59839

Instrumentation Back Ferrule 1/2"

Item#: 59887

Instrumentation Connector 1/2" x 3/8-18

Item#: 59834

Quick Disconnect Coupler Steel 1/4" x 1/4-18

Item#: 11941

Hose Barb Brass 1/2" x 3/8-18

Item#: 96862

Water Line Coupling Brass 3/4"

Item#: 98954

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Vision Pro Super

Item#: DY21061040

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

Product Description

• Precision tube fittings for the most demanding process control and instrumentation applications• Positive leak-free seal after repeated assembly • Heat code traceability on 316 Stainless Steel • Fully interchangeable with Swagelok® • Double ferrule design
• Manufactured to ANSI B31.1 and B31.3 Standards

Technical Specifications

Item#: 1343405
Tube Size 1/4 "
Configuration 45° Male Elbow
Connection Type A x B Tube x Male NPT
Fitting Dimension A 1/4 "
Fitting Dimension B 1/8 "
Material Stainless Steel
Thread Style Male NPT
Thread Size 1/8 "
UNSPSC #: 27131600
TAA Compliant: No
