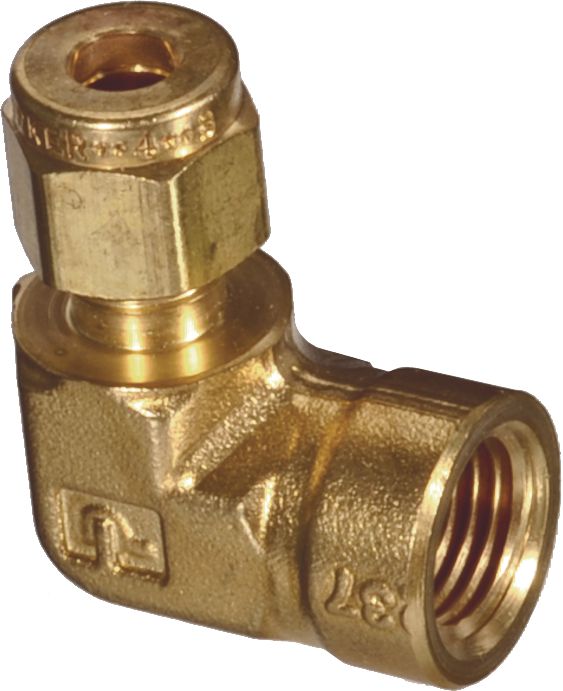

Instrumentation Elbow, 90°, Brass, 1/4" x 1/4-18, Tube x Female NPT
(Pack of 1)

Item#: 59796

Lawson Products

• Precision tube fittings for the most demanding process control and instrumentation applications
• Positive leak-free seal after repeated assembly
• Heat code traceability on 316 Stainless Steel
• Fully interchangeable with Swagelok® and Parker A-LOK®
• Double ferrule design
• Manufactured to ANSI B31.1 and B31.3 Standards
• ASTM F1387 certified

Read More
Check Availability

Catalog page#: 9-5

Frequently Bought Together


Hose Barb Brass 5/8" x 1/2-14

Item#: 50527

Hose Barb Brass 1/2" x 1/4-18

Item#: 96861

Garden Hose Cap Brass 3/4-11-1/2

Item#: 98610

Non-Perforated Clamp 316 SS #4 7/16 to 11/16"

Item#: 58832

Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18

Item#: 5314

Ball Check Grease Fitting 90°

Item#: 6203

Instrumentation Elbow 1 x 1"

Item#: 1343384

Instrumentation Male Branch Tee 3/8 x 3/8 x 1/4"

Item#: 59808

Instrumentation Elbow 3/4 x 3/4"

Item#: 1343381

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: 11951

Hose Barb Brass 5/8" x 1/2-14

Item#: 50527

Hose Barb Brass 1/2" x 1/4-18

Item#: 96861

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

Product Description

• Precision tube fittings for the most demanding process control and instrumentation applications
• Positive leak-free seal after repeated assembly
• Heat code traceability on 316 Stainless Steel
• Fully interchangeable with Swagelok® and Parker A-LOK®
• Double ferrule design
• Manufactured to ANSI B31.1 and B31.3 Standards
• ASTM F1387 certified

Technical Specifications

Item#: 59796
Tube Size 1/4 "
Description Instrumentation Fitting
Fitting Type Compression
Configuration Female Elbow
Angle 90 °
Connection Type A x B Tube x Female NPT
Fitting Dimension A 1/4 "
Fitting Dimension B 1/4 "
Material Brass
Swagelok Number 400-8-4
Thread Style Female NPT
Thread Size 1/4 "
UNSPSC #: 27131600
TAA Compliant: No
Weight: 0.19 lb
