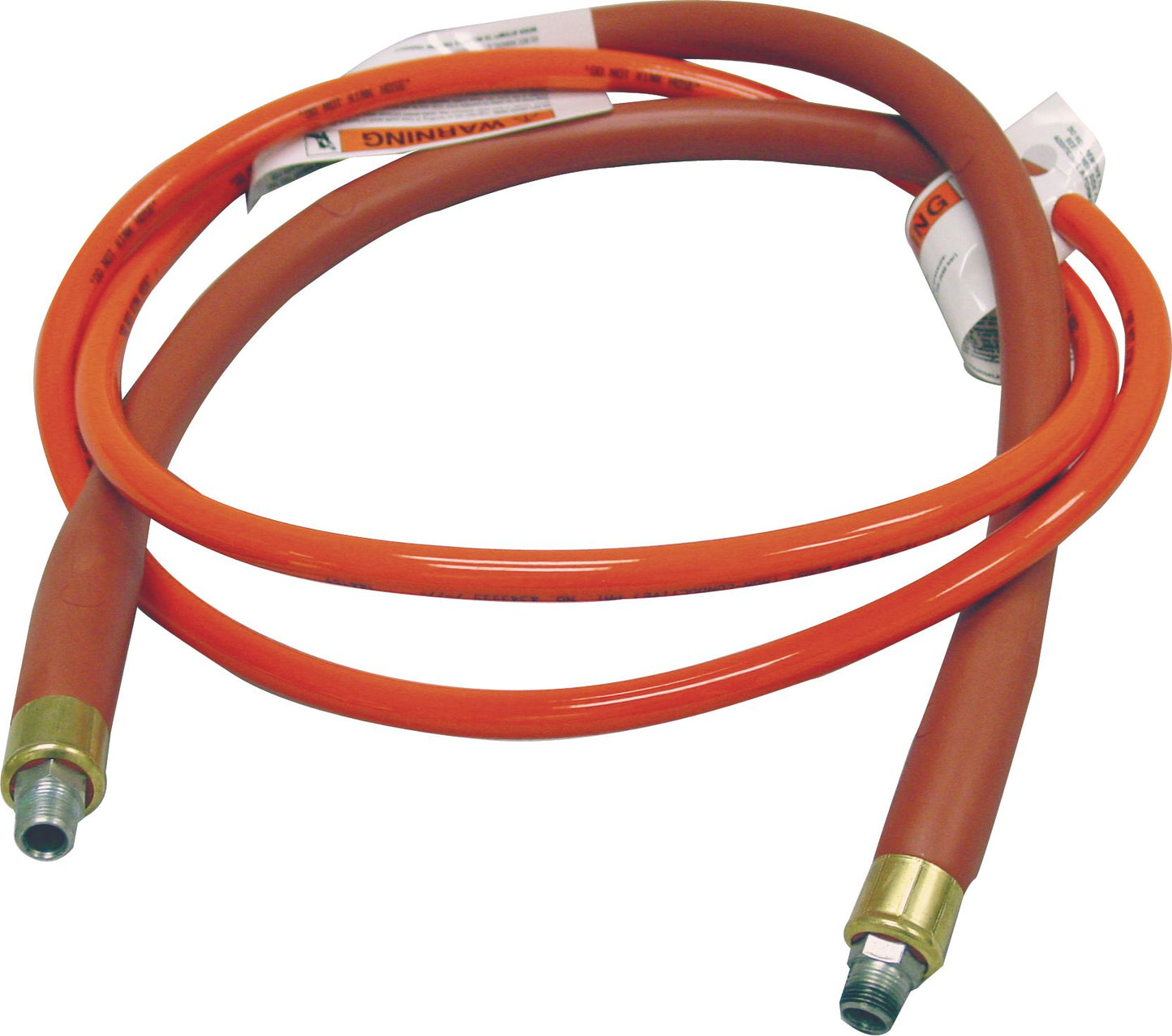

Lawson- Jack Hose- Non-Conductive Jack Hose Assembly- Spiraled High tensile aramid fiber- IJ100- 10000 psi -1/4 (-4)
(Pack of
1)
SKU:41518 Item#: 41518
• Advantages: Non-conductive, meets SAE J517 standards (less than 50 micro-amperes leakage under 75,000V for 5 minutes. Strain relief on both ends with warning tag
Meets or exceeds IJ100 industry standard
• Inner Tube: Nylon-lined core tube
• Reinforcement: Spiral high tensile aramid fiber
• Cover: Polyurethane – non-perforated
• Temperature Range: –40°F to +150°F (–40°C to +65°C)
Product Description
• Advantages: Non-conductive, meets SAE J517 standards (less than 50 micro-amperes leakage under 75,000V for 5 minutes. Strain relief on both ends with warning tagMeets or exceeds IJ100 industry standard
• Inner Tube: Nylon-lined core tube
• Reinforcement: Spiral high tensile aramid fiber
• Cover: Polyurethane – non-perforated
• Temperature Range: –40°F to +150°F (–40°C to +65°C)
Technical Specifications
| Item#: | 41518 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Non-Conductive Jack Hose Assembly |
| Category / Performance | Ultra High Pressure |
| Industry Rating 1 | IJ100 |
| Industry Rating | SAE J517 non-conductive hose. Less than 50 microamperes leakage when subjected to 75,000 volts for 5 minutes |
| Manufacturer Series Name | Non-Conductive Jack Hose Assembly |
| I.D. | 1/4 (-4) " |
| Working Pressure | 10,000 PSI |
| Burst Pressure | 20,000 PSI |
| Inner Tube Material | Synthetic Rubber |
| Hose Reinforcement | Spiraled High tensile aramid fiber |
| Hose Cover Material | Polyurethane - non perforated |
| End Fittings | 3/8 MPT with Strain Relief |
| Temperature | Normal |
| Color | Orange |
| Length | 20 ft |
| Size | 1/4" x 20' |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Jacking |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 3.5 lb |
