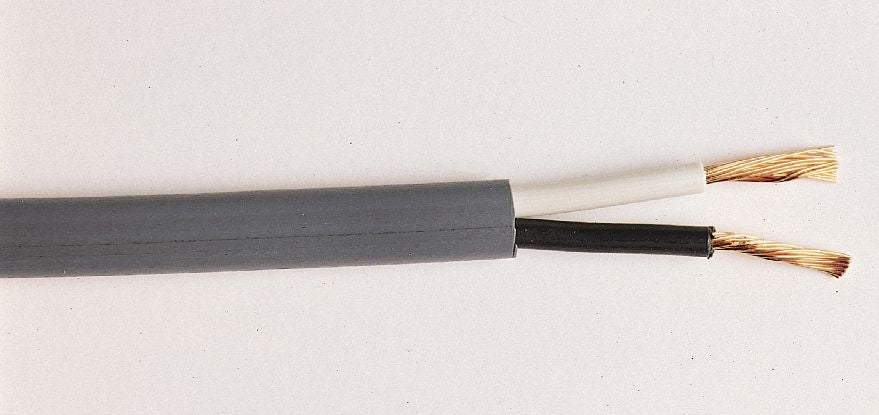

Jacketed Parallel Primary Wire, 16 AWG, 2 Conductor, 100' Length, 60 Volts, White, Black, PVC Insulation
(Pack of
1)
• 100 feet per roll
• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 221°F (105°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Plastic Covered Primary Wire 16 AWG 100' Black
Couldn't load pickup availability
Cross Linked Primary Wire 14 AWG 100' Black
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Red
Couldn't load pickup availability
Bonded Parallel Primary Wire 16 AWG 4-Conductor
Couldn't load pickup availability
Bonded Parallel Primary Wire 14 AWG 4-Conductor
Couldn't load pickup availability
Bonded Parallel Primary Wire 16 AWG 3-Conductor
Couldn't load pickup availability
Cross Linked Primary Wire 14 AWG 100' Black
Couldn't load pickup availability
Plastic Covered Primary Wire 16 AWG 100' Black
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Red
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• 100 feet per roll• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 221°F (105°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Technical Specifications
| Item#: | 5563E |
|---|---|
| Style | Jacketed Parallel Primary Wire |
| Wire Gauge | 16 AWG |
| Color | White, Black |
| Number of Conductors | 2 |
| Length | 100 ft |
| Package Type | 1 Roll |
| Volts | 60 |
| Temperature Rating | 221 °F |
| Approvals | Conductors Meet SAE J1128, RoHS compliant |
| Type | Wire |
| UNSPSC #: | 26121524 |
| TAA Compliant: | Yes |
| Weight: | 3.65 lb |
