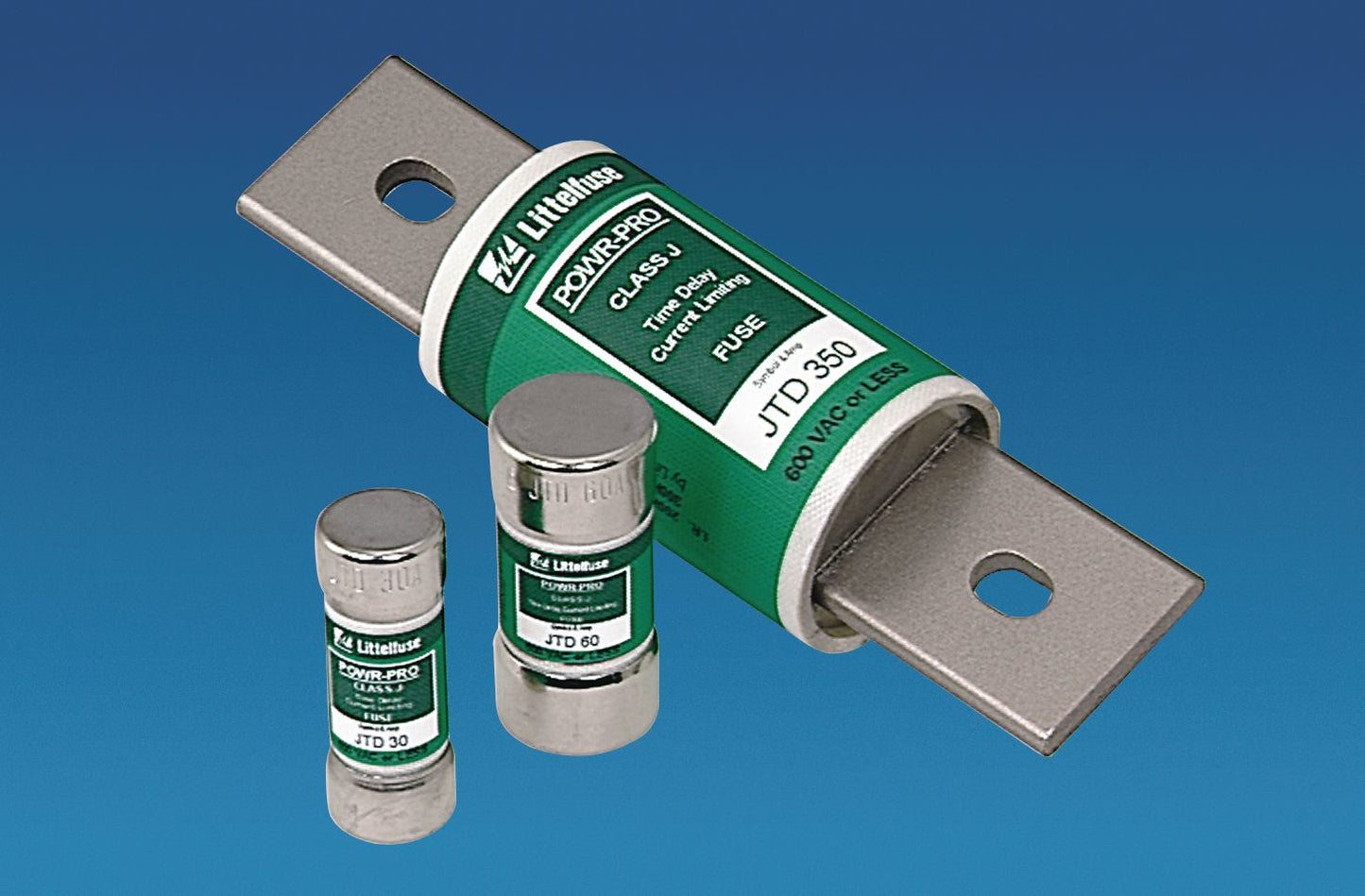

JTD Series Class J Indicator Fuse 30A
(Pack of
1.0)
• Indicator fuses provide visual blown fuse indication at a glance
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Interrupting rating: 200,000A rms symmetrical; 300,000A rms symmetrical (UL listed Special Purpose)• UL listed Class J Fuses per UL 198C• CSA certified HRCI-J per C22.2 #106• Meets Federal Specification WF1814 (QPL)
• Provide space-saving protection for service entrance, main, feeder and general-purpose branch circuits
• Time-delay characteristics and high current limitation mean the JTD fuse is also used in the protection of circuits with high-inrush currents such as motors, transformers and solenoids, including both IEC-rated and NEMA-rated devices
Fuses 100A and higher have blade ends
Frequently Bought Together
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Low-Profile JCASE High Amp Fuse 30A Pink
Couldn't load pickup availability
ATO/ATC Fuse 4A Pink
Couldn't load pickup availability
MICRO2 Series Blade Fuse 30A Green
Couldn't load pickup availability
313 Series Glass Body Fuse 1/16A
Couldn't load pickup availability
KTK Series Midget Fuse 25A
Couldn't load pickup availability
FLSR Series Class RK5 Indicator Fuse 90A
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Product Description
• Indicator fuses provide visual blown fuse indication at a glance• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Interrupting rating: 200,000A rms symmetrical; 300,000A rms symmetrical (UL listed Special Purpose)• UL listed Class J Fuses per UL 198C• CSA certified HRCI-J per C22.2 #106• Meets Federal Specification WF1814 (QPL)
• Provide space-saving protection for service entrance, main, feeder and general-purpose branch circuits
• Time-delay characteristics and high current limitation mean the JTD fuse is also used in the protection of circuits with high-inrush currents such as motors, transformers and solenoids, including both IEC-rated and NEMA-rated devices
Fuses 100A and higher have blade ends
Technical Specifications
| Item#: | 19889 |
|---|---|
| Style | JTD, Class J Fuses, Non-Indicator Series |
| Amperage | 30 A |
| Approvals | UL, CSA |
| Type | Fuses |
| Bussman Number | LPJ-30SP |
| UNSPSC #: | 39121627 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
Product Restrictions
