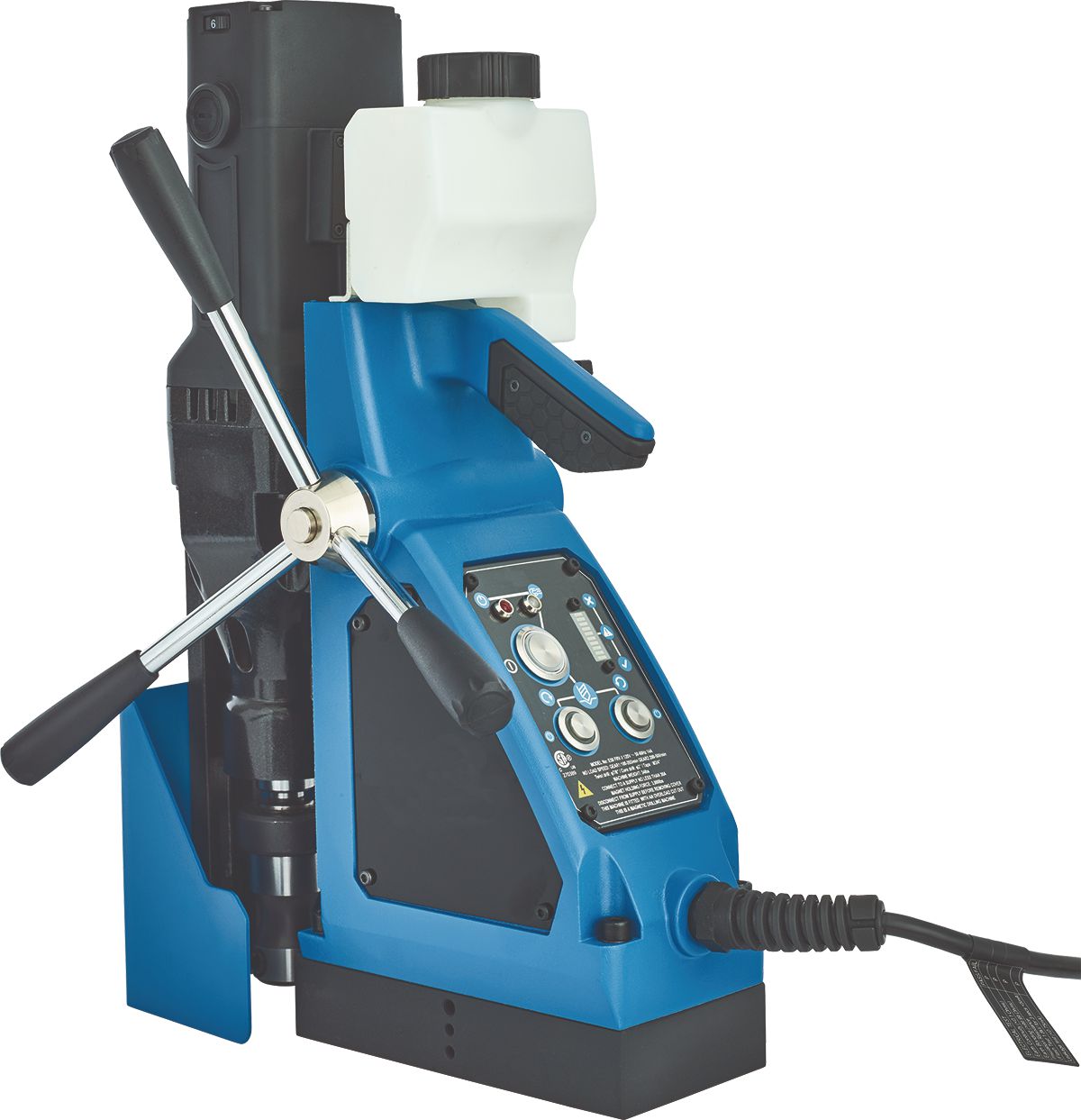

Large Portable Magnetic Drill, 2HP 120V/10A 1500W Single Phase Motor, 2" Depth of Cut, 2" Diameter
(Pack of
1)
SKU:1574608 Item#: 1574608
• Capacity: 2" x 2"
• Height (maximum): 22-1/4"
• Weight: 34.2 lbs.
• Magnet: 3,035 lbs.
• Variable speed: Reverse function for tapping
• Pressure indicator technology: Visual cues for increasing or decreasing pressure on material
• Reversible handle
• Coolant arbor and 1/2" chuck included
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold. Insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
CryoBore 3/4" Dia Annular Cutter, 2-3/8" Cutting Depth
Couldn't load pickup availability

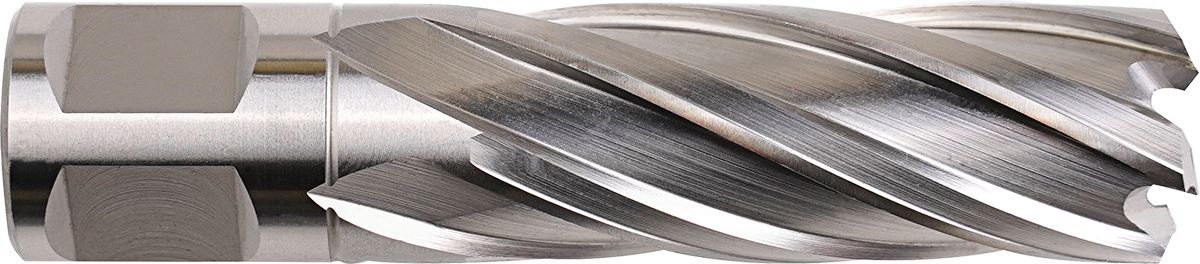

HSS Annular Cutter 1-1/2"
Couldn't load pickup availability
HSS Annular Cutter 5/8"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/4"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Maroon
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/64"
Couldn't load pickup availability
Portable Magnetic Drill 1-1/2"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Large Index-Tend Pry Bar
Couldn't load pickup availability
100 Piece, 1/4" Shank Master Bit Set
Couldn't load pickup availability
8Pc Metric Mini Double Head Wrench Set
Couldn't load pickup availability
Product Description
• Capacity: 2" x 2"• Height (maximum): 22-1/4"
• Weight: 34.2 lbs.
• Magnet: 3,035 lbs.
• Variable speed: Reverse function for tapping
• Pressure indicator technology: Visual cues for increasing or decreasing pressure on material
• Reversible handle
• Coolant arbor and 1/2" chuck included
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold. Insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 1574608 |
|---|---|
| Height | 22-1/4" maximum; 17-9/16" minimum |
| Width | 7-43/64 " |
| Length | 12-13/32 " |
| Magnetic Dead Lift | 3,370 |
| Motor | 2 hp 120V 10A 1500W (single phase) |
| Arbor Bore | 3/4 " |
| Cutter Diameter | 2 " |
| Depth of Cut | 2 " |
| Drill Point Breakaway | 3035 |
| Magnetic Base | 7-7/8" X "3-7/8" X"1.5" |
| Centerline Pilot to Motor Face | 2-1/4 " |
| Centerline Pilot to Magnet Face | 2-3/64 " |
| UNSPSC #: | 23241801 |
| TAA Compliant: | Yes |
