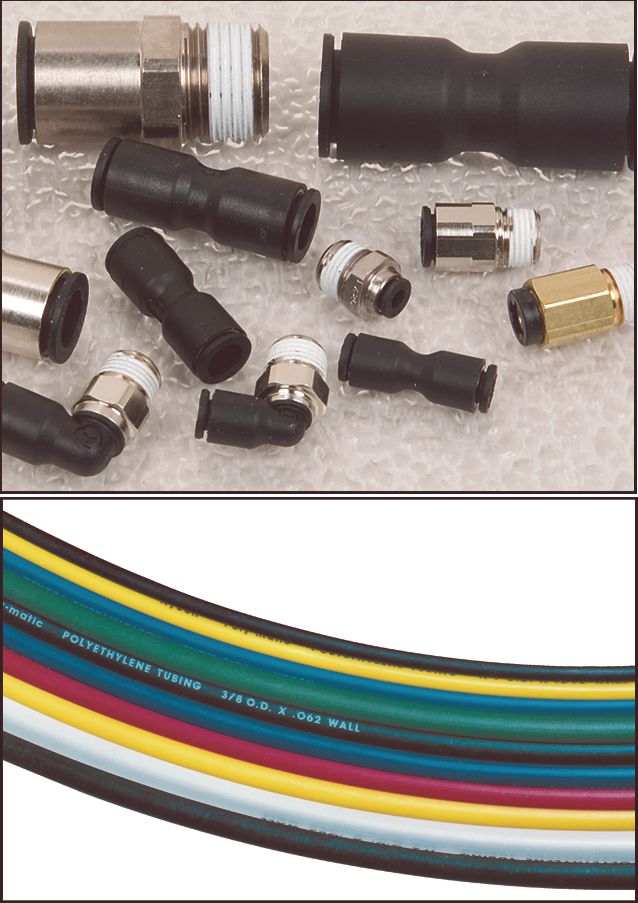

LF3000 Push-To-Connect Fitting and Tubing Kit
(Pack of
1)
SKU:1418641 Item#: 1418641
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries.
Fittings
• Diameters: 1/8" to 1/2"
• All items in the LF3000 range are Silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C)
• Working pressure: Up to 290 PSI
• Sutable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass reinforced nylon 6.6
– Collar: Nylon
– Gripping Ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
Tubing
• Resistant to solvents and chemicals
• Non-toxic
• 100 feet per roll
• Temperature range: –100°F to +175°F (–73°C to +79°C)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries.Fittings
• Diameters: 1/8" to 1/2"
• All items in the LF3000 range are Silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C)
• Working pressure: Up to 290 PSI
• Sutable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass reinforced nylon 6.6
– Collar: Nylon
– Gripping Ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
Tubing
• Resistant to solvents and chemicals
• Non-toxic
• 100 feet per roll
• Temperature range: –100°F to +175°F (–73°C to +79°C)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 1418641 |
|---|---|
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
