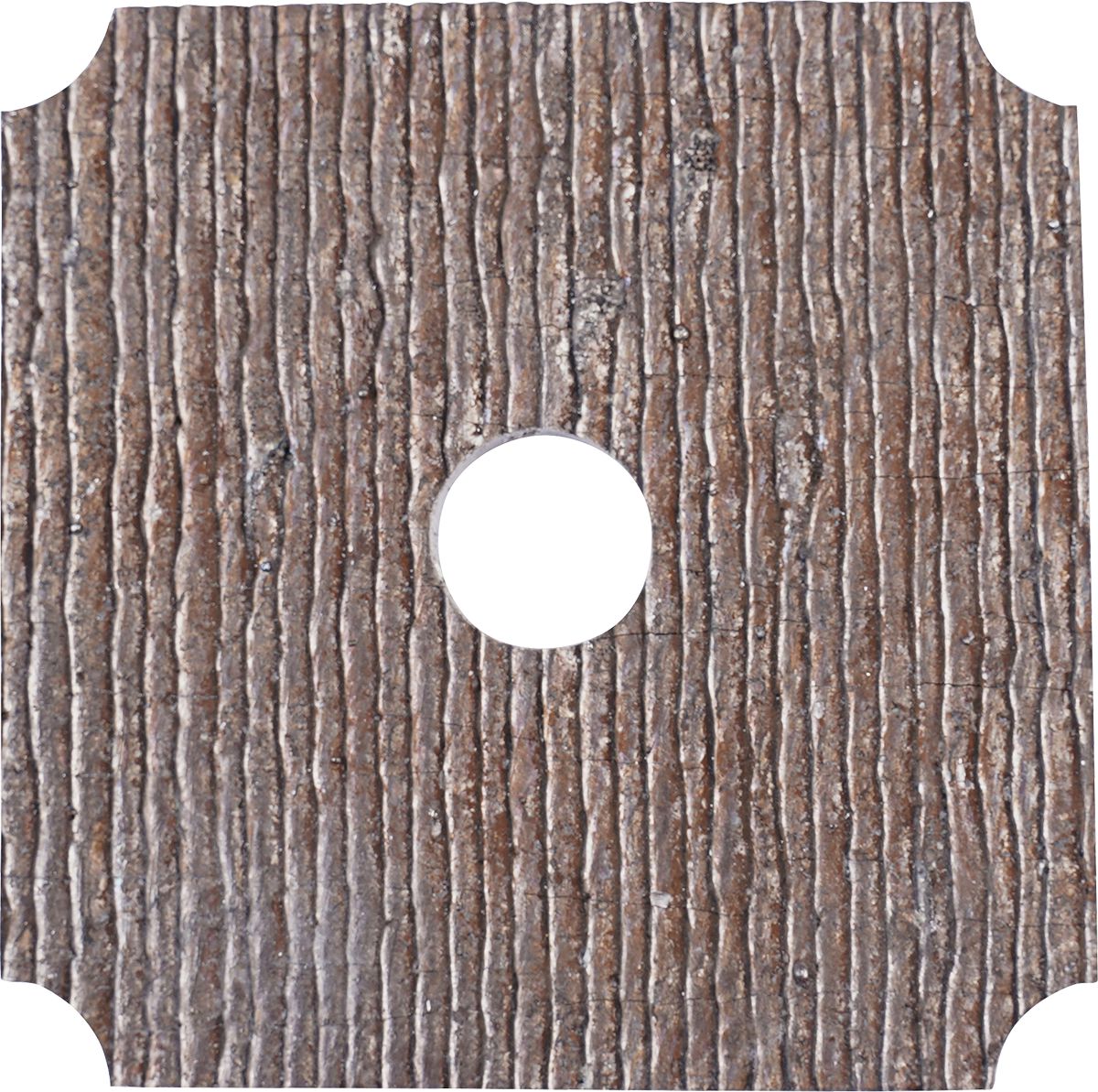

Cryogeniclly Treated Carbide Overlay Plates Light Weight Hardness 66-68 Rc Service Temperature Up To 400F With Plug Hole
(Pack of
1)
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.
• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Frequently Bought Together
Hex Cap Screw Property Class 12.9 M20-2.5 x 80mm
Couldn't load pickup availability
Hex Cap Screw Grade 9 Alloy Steel 1/2-13 x 3-1/4"
Couldn't load pickup availability
Food Grade Silicone Lubricant 10oz
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
1/4 on 1/2 Dimension I Single Pass Overlay
Couldn't load pickup availability
1/4 on 1/4 Dimension I Single Pass Overlay
Couldn't load pickup availability
1/8 on 1/4 Dimension I Single Pass Overlay
Couldn't load pickup availability
Round Soapstone 1/4 x 5"
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 1/4X4X5
Couldn't load pickup availability
Product Description
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Technical Specifications
| Item#: | EG09910436 |
|---|---|
| Type | Carbide Overlay Plate |
| Total Thickness | 13/64 " |
| Plate Width | 4 " |
| Plate Length | 36 " |
| Size | 4" x 36" x 13/64 " |
| UNSPSC #: | 30102201 |
| TAA Compliant: | Yes |
| Weight: | 7.58 lb |
