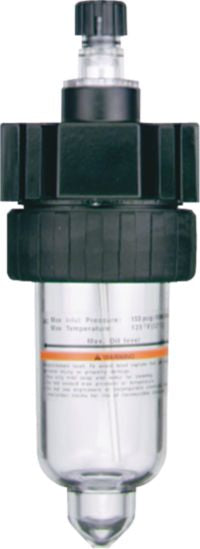

Lubricator, 1/2" Body, 3/8-18 Female NPT, 7.2oz, 65ft³/min, 150PSI
(Pack of
1)
SKU:55088 Item#: 55088
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• Mist adjustment requires no tools (except 1/8" and 1", which require use of a screwdriver)• Solid all-metal body• Clear polycarbonate bowl• 1" body size is all metal with a polycarbonate sight
Ideal for lubrication of air motors, tools and valves where air flow is encountered, these lubricators provide proportional oil delivery over a wide range of air flow. Generates oil particles of five microns or smaller, keeping the microscopic oil particles in suspension for system-wide lubrication.
Frequently Bought Together
Pressure Gauge Lower Mount 0 to 160PSI
Couldn't load pickup availability
Pressure Gauge Lower Mount 0 to 200PSI
Couldn't load pickup availability
Regulator 1/4-18 Female NPT
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 1/4-18
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• Mist adjustment requires no tools (except 1/8" and 1", which require use of a screwdriver)• Solid all-metal body• Clear polycarbonate bowl• 1" body size is all metal with a polycarbonate sight
Ideal for lubrication of air motors, tools and valves where air flow is encountered, these lubricators provide proportional oil delivery over a wide range of air flow. Generates oil particles of five microns or smaller, keeping the microscopic oil particles in suspension for system-wide lubrication.
Technical Specifications
| Item#: | 55088 |
|---|---|
| Description | Lubricator |
| Body Size | 1/2 " |
| Maximum Flow | 65 ft³/min |
| Maximum Pressure | 150 PSI |
| Port Style | Female NPT |
| Port Size | 3/8-18 |
| Bowl Capacity | 7.2 Oz. |
| Replacement Polycarbonate Bowl | 56957* |
| Replacement Metal Bowl | 56958 |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 2.7 lb |
