Lateral Tee, Malleable Iron, 45°, Galvanized, 1-11-1/2 x 1-11-1/2 x 1-11-1/2, Female NPT x Female NPT x Female NPT, 150PSI
(Pack of
1)
SKU:1638226 Item#: 1638226
150 lb. Rated, Black and Galvanized
• Class 150
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved
Frequently Bought Together

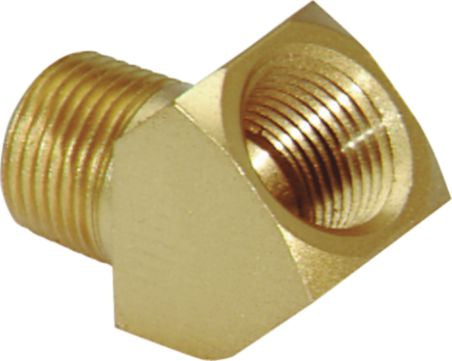

Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability

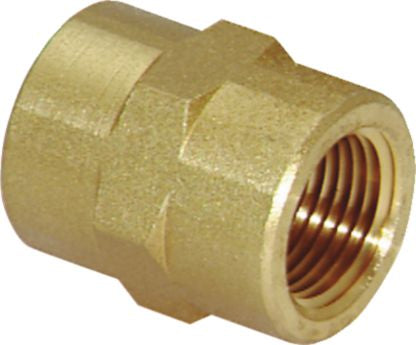

Pipe Coupling Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
Merchant Coupling Steel 3/4-14 x 3/4-14
Couldn't load pickup availability
Hex Bushing Malleable Iron 1-11-1/2 x 3/4-14
Couldn't load pickup availability
Pipe Nipple Steel Black 3/8-18 x 3/8-18
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
150 lb. Rated, Black and Galvanized• Class 150
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved
Technical Specifications
| Item#: | 1638226 |
|---|---|
| Fitting Type | Pipe |
| Material | Malleable Iron |
| Class | 150 lb. |
| Configuration | Lateral |
| Angle | 45 ° |
| Connection Type A x B x C | Female NPT x Female NPT x Female NPT |
| Fitting Dimension A | 1-11-1/2 |
| Fitting Dimension B | 1-11-1/2 |
| Fitting Dimension C | 1-11-1/2 |
| Finish | Galvanized |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 40174606 |
| TAA Compliant: | Yes |
| Weight: | 0.94 lb |
