Home Hydraulics Fittings Industrial Tubing Metric brass push-on elbow fitting
Fittings

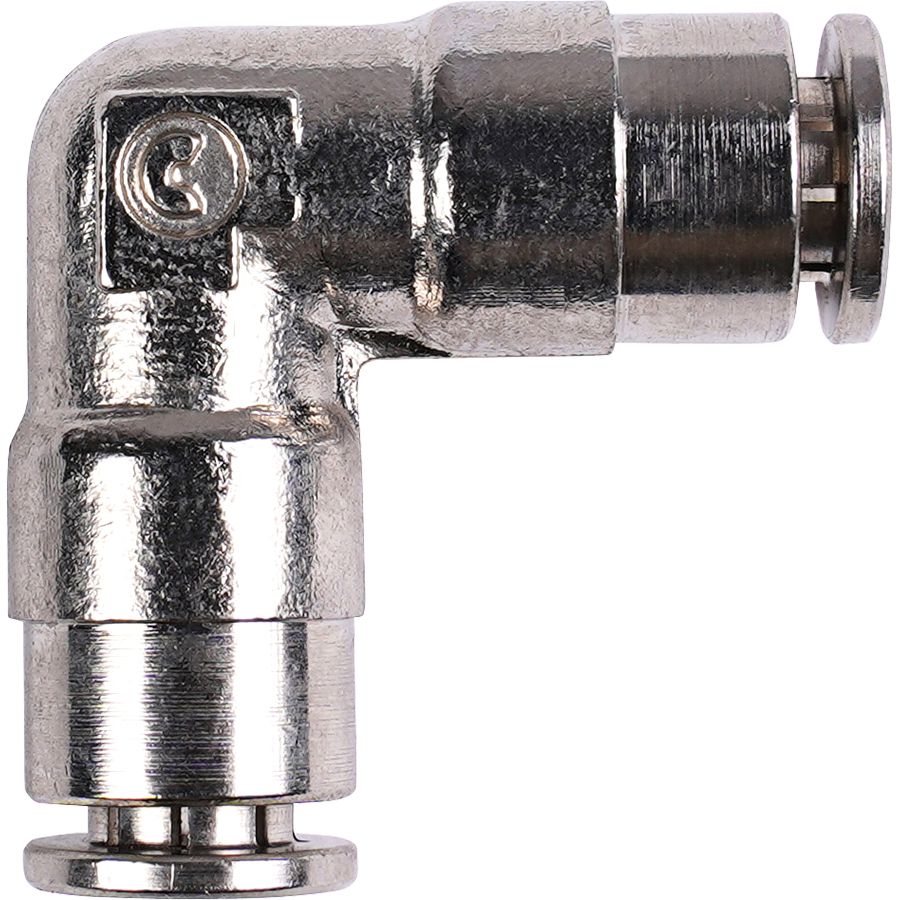

4 MM brass push-on 90 degree elbow fitting
(Pack of 1)

Item#: DY41732004

Lawson Products

• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.

Read More
Check Availability

Frequently Bought Together


Pipe Nipple Steel Black Schedule 40 Welded 1/4-18 x 7/8 " Close

Item#: 8695

Merchant Coupling Steel 1/8-27 x 1/8-27

Item#: 8635

Pipe Hex Nipple Brass 3/8-18 x 1/4-18

Item#: 5296

Miniature Clamp SS 5/16 to 7/8"

Item#: 86723

DOT Compression Union Brass 1/4"

Item#: 84253

Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18

Item#: 5317

Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 6mm

Item#: 54399

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"

Item#: 55737

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/32 x 1/8"

Item#: 86749

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447

Product Description

• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.

Technical Specifications

Item#: DY41732004
Style Push-to-Connect
Configuration Union Elbow
Tube Size 4 mm
Material Nickel-Plated Brass
Wrench Size 9 mm
Working Pressure Up To Maximum Working Pressure of Tubing Being Used
Temperature Range -40 to +212 °F
UNSPSC #: 40183100
TAA Compliant: No
Weight: 0.025 lb
