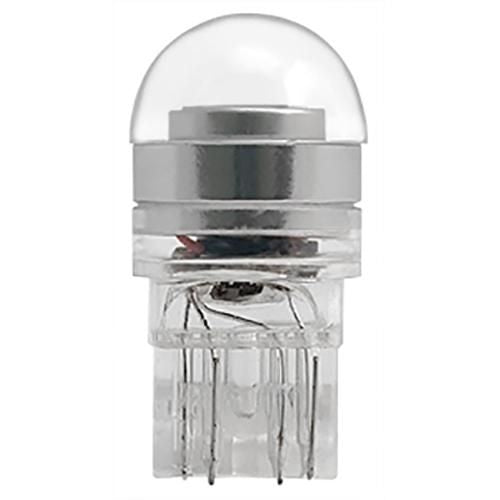

Miniature LED Bulb 12-24V, T-6 1/2 Base W3x16q, Super White, Industry No. 7443
(Pack of
2)
SKU:1607726 Item#: 1607726
Robust design – Unlike incandescent bulbs there are no filaments to break
Longer lasting – 10,000 plus hours of life
Brighter – More light output compared to incandescent bulbs provides additional safety
A general rule is that the LED bulb should match the color of the lens that covers the bulb.
• Clear Lens: Depending on the application, either a white or an amber bulb can be used behind a clear lens.
• Red Lens: Always choose a red LED bulb behind a red lens. If you place a white LED behind a red tail/brake lens, there will be too much orange/yellow and the light will appear pink/orange.
• Amber Lens: Always choose an amber LED bulb behind an amber lens. If you place a white LED behind an amber lens, the light will appear greenish.
Couldn't load pickup availability
Catalog page#: 19-20
Frequently Bought Together
H3 Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 32CP
Couldn't load pickup availability
H3 Halogen Miniature Bulb 70W 24V
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Master Series Handheld Flashlight
Couldn't load pickup availability
Right Angle Safety LED Light 3x AA 7.44"
Couldn't load pickup availability
Rechargeable Neck Light
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
Robust design – Unlike incandescent bulbs there are no filaments to breakLonger lasting – 10,000 plus hours of life
Brighter – More light output compared to incandescent bulbs provides additional safety
A general rule is that the LED bulb should match the color of the lens that covers the bulb.
• Clear Lens: Depending on the application, either a white or an amber bulb can be used behind a clear lens.
• Red Lens: Always choose a red LED bulb behind a red lens. If you place a white LED behind a red tail/brake lens, there will be too much orange/yellow and the light will appear pink/orange.
• Amber Lens: Always choose an amber LED bulb behind an amber lens. If you place a white LED behind an amber lens, the light will appear greenish.
Technical Specifications
| Item#: | 1607726 |
|---|---|
| Type | Miniature |
| Light Source | LED |
| Volts | 12 - 24 |
| Watts | 1.54/0.30 |
| Base Type | Wedge (T-6 1/2) |
| Life Expectancy | 12,000 |
| Industry Number | 7443WLED |
| Color | White |
| UNSPSC #: | 25172901 |
| TAA Compliant: | Yes |
| Weight: | 0.055 lb |
