Miniature LED Bulb, 5Watt, Resistor Warning Canceller
(Pack of
2)
SKU:1607725 Item#: 1607725
Vehicles are required to have Outage Detection systems that warn drivers when a bulb has burned out. These systems work by monitoring the power consumed by the bulb. When the power drops below a preset threshold, the warning is triggered. The warning can be either a hyperflash (fast-blinking of the turn signal) and/or a warning light on the dashboard.
LED bulbs consume a fraction of the power of incandescent bulbs. This difference can be enough to trigger your car’s outage warning system. In many cases, LED bulbs use so little power they end up triggering an outage warning.

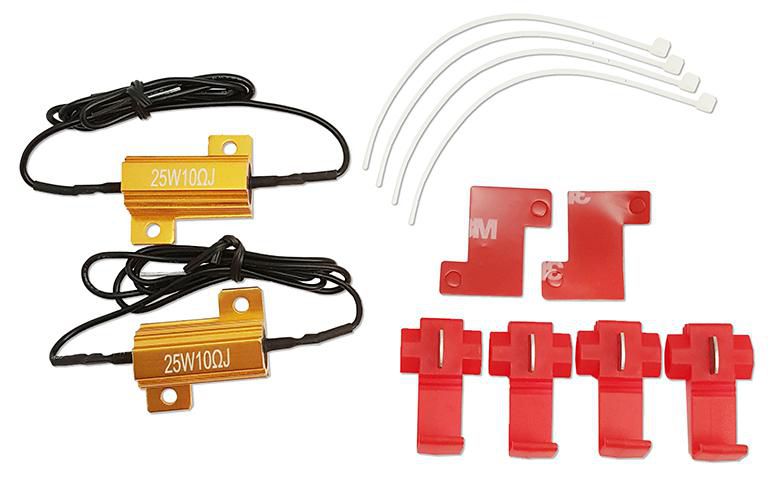

The warning canceller must be connected between the turn and ground wires of the socket. Because its power consumption will be dissipated as heat, it is important to attach it to a flat metal surface so the heat can be safely dissipated.
The required warning canceller is determined by the wattage of the incandescent bulb being replaced. For bulbs inbetween choose whichever is closest.
Couldn't load pickup availability
Catalog page#: 19-20
Frequently Bought Together
Miniature Incandescent Bulb 12V 21CP
Couldn't load pickup availability
Headlamp Capsule Halogen Miniature Bulb 55/60W
Couldn't load pickup availability
Miniature Incandescent Bulb 24V 1CP
Couldn't load pickup availability
Right Angle Safety LED Light 3x AA 7.44"
Couldn't load pickup availability
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
Nylon Cable Tie 6" Black
Couldn't load pickup availability
Inspector Pocket Light LED 180/54/180lm
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 3CP
Couldn't load pickup availability
Vision Pro Constant Current Cyclops Worklight with Base
Couldn't load pickup availability
CryoBoost Cobalt Drill Bit, 19/64" Dia. W/Flats
Couldn't load pickup availability
Hex Cap Screw Grade 9 Alloy Steel 5/16-18 x 3"
Couldn't load pickup availability
Hex Flange Bolt Grade 8 1/2-13 x 2-3/4"
Couldn't load pickup availability
18" Locking Smooth Operator Clamp
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Product Description
Vehicles are required to have Outage Detection systems that warn drivers when a bulb has burned out. These systems work by monitoring the power consumed by the bulb. When the power drops below a preset threshold, the warning is triggered. The warning can be either a hyperflash (fast-blinking of the turn signal) and/or a warning light on the dashboard.LED bulbs consume a fraction of the power of incandescent bulbs. This difference can be enough to trigger your car’s outage warning system. In many cases, LED bulbs use so little power they end up triggering an outage warning.
The warning canceller must be connected between the turn and ground wires of the socket. Because its power consumption will be dissipated as heat, it is important to attach it to a flat metal surface so the heat can be safely dissipated.
The required warning canceller is determined by the wattage of the incandescent bulb being replaced. For bulbs inbetween choose whichever is closest.
Technical Specifications
| Item#: | 1607725 |
|---|---|
| Type | Miniature |
| Light Source | LED |
| Watts | 5 |
| UNSPSC #: | 25172901 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
