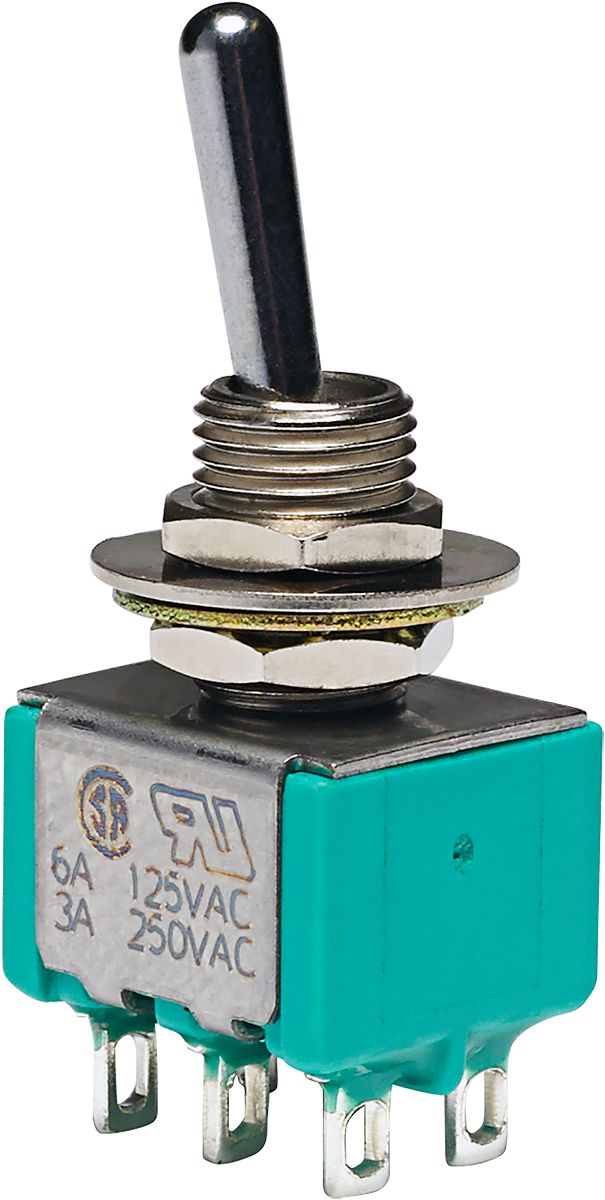

Miniature Toggle Switch, Single Pole Double Throw, 6 Amps, 125 Volts, 3 Blade Terminal, On-None-On
(Pack of
2)
SKU:90380 Item#: 90380
• Silver switching contacts and rockers
• Stainless steel frame
• Solder blade termination
• Direct panel mount – 1/4" mounting stem dia.
• 6A at 125V AC; 3A at 250V AC; 6A at 28V DC
• Developed to meet the needs of miniaturized circuits
Couldn't load pickup availability
Catalog page#: 17-126
Frequently Bought Together
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Sealed Toggle Switch DPDT 10A 125V
Couldn't load pickup availability
Rocker Switch SPST 25A 12VDC Off-On
Couldn't load pickup availability
Rocker Switch SPST, 14V DC 20A , 28V DC 10A, Red LED Round, On-Off
Couldn't load pickup availability
Ground Fault Receptacle 15A 125V White
Couldn't load pickup availability
Universal Sealed Toggle Switch SPDT 10A 115V
Couldn't load pickup availability
Push-Pull Switch SPST 36VDC Momentary On
Couldn't load pickup availability
Product Description
• Silver switching contacts and rockers• Stainless steel frame
• Solder blade termination
• Direct panel mount – 1/4" mounting stem dia.
• 6A at 125V AC; 3A at 250V AC; 6A at 28V DC
• Developed to meet the needs of miniaturized circuits
Technical Specifications
| Item#: | 90380 |
|---|---|
| Style | Mini Toggle Switches |
| Pole | Single |
| Throw | Double |
| Terminal Connection | 3 Blades |
| Switch Positions | On - None - On |
| Mounting Stem Diameter | 1/4 " |
| Electrical Rating Amps at Given Voltage (AC or DC Current) | 6A at 125V AC; 3A at 250V AC; 6A at 28V DC |
| Approvals | UL |
| Type | Switches |
| UNSPSC #: | 39122200 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
