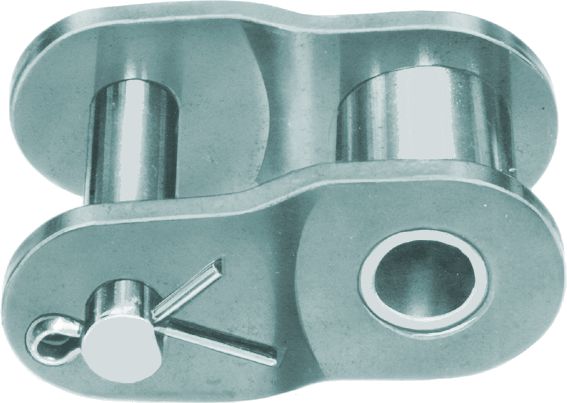

Offset Link (Half Link), Single Strand, Hi-Guard, Steel, Zinc Plated, Industry No. 80, 1" Pitch, 16,830lbs Average Tensile Strengt
(Pack of
5)
SKU:1443455 Item#: 1443455
Hi-Guard chain is second in corrosion resistance performance next to a stainless steel chain. A luster-less white protective film is formed on the surface of the chain by a special baking process. The Hi-Guard chain has excellent galvanic corrosion resistance and rust resistance. Since the film is heat-resistant up to 482°F, it protects the chain even in high temperature. The Hi-Guard chain has slightly lower tensile strength than standard chain, but it is equivalent in maximum allowable load and wear resistance.
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Product Description
Hi-Guard chain is second in corrosion resistance performance next to a stainless steel chain. A luster-less white protective film is formed on the surface of the chain by a special baking process. The Hi-Guard chain has excellent galvanic corrosion resistance and rust resistance. Since the film is heat-resistant up to 482°F, it protects the chain even in high temperature. The Hi-Guard chain has slightly lower tensile strength than standard chain, but it is equivalent in maximum allowable load and wear resistance.Technical Specifications
| Item#: | 1443455 |
|---|---|
| Manufacturer Model #: | HL80-E |
| Configuration | Offset Link (Half Link) |
| Type | Single Strand |
| Style | Standard |
| Material | Steel |
| Finish | Zinc Plate |
| Industry Number | 80 |
| Pitch | 1 " |
| Roller Width | 0.625 " |
| Roller Diameter | 0.625 " |
| Plate Thickness | 0.126 " |
| Plate Height | 0.945 " |
| Average Tensile Strength | 16,830 lb |
| Maximum Load | 3,300 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
