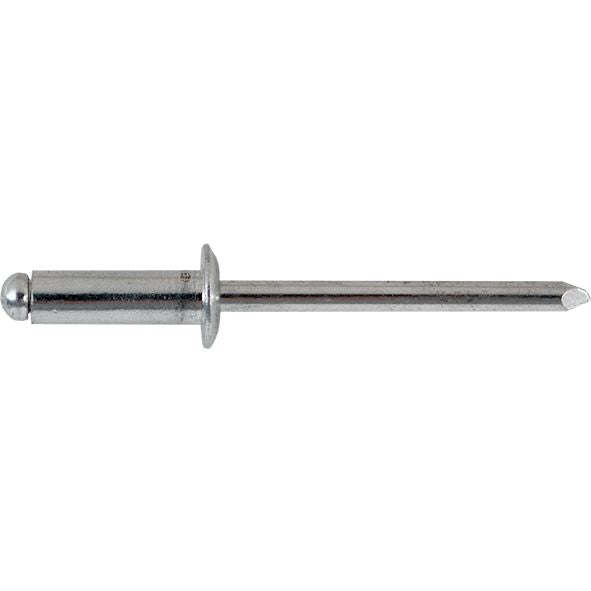

Open End Rivet Dome Head Stainless Steel 1/8"
(Pack of
100.0)
Dome Head
• 18-8 stainless steel
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 3/8"
Item#: 88437
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Item#: 53979
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Item#: 80933
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 1/8"
Item#: 1973
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 1956
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 1957
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 1/8"
Item#: 1973
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 1/4"
Item#: 90481
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 1956
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Item#: 1368141
Couldn't load pickup availability
Vision Pro Super
Item#: DY21061040
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Item#: 1368140
Couldn't load pickup availability
Product Description
Dome Head• 18-8 stainless steel
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 82341 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body/Mandrel | Stainless Steel/Stainless Steel |
| Diameter | 1/8 " |
| Grip Range | 0.126 – 0.187 " |
| Industry Number | 43 |
| Hole Size | 0.129 – 0.133 " |
| Drill Size | #30 |
| Head Diameter | 0.250 " |
| Head Height | 0.040 " |
| Body Length | 0.337 " |
| Shear Strength | 420 lb |
| Tensile Strength | 530 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | Yes |
| Weight: | 0.34 lb |
