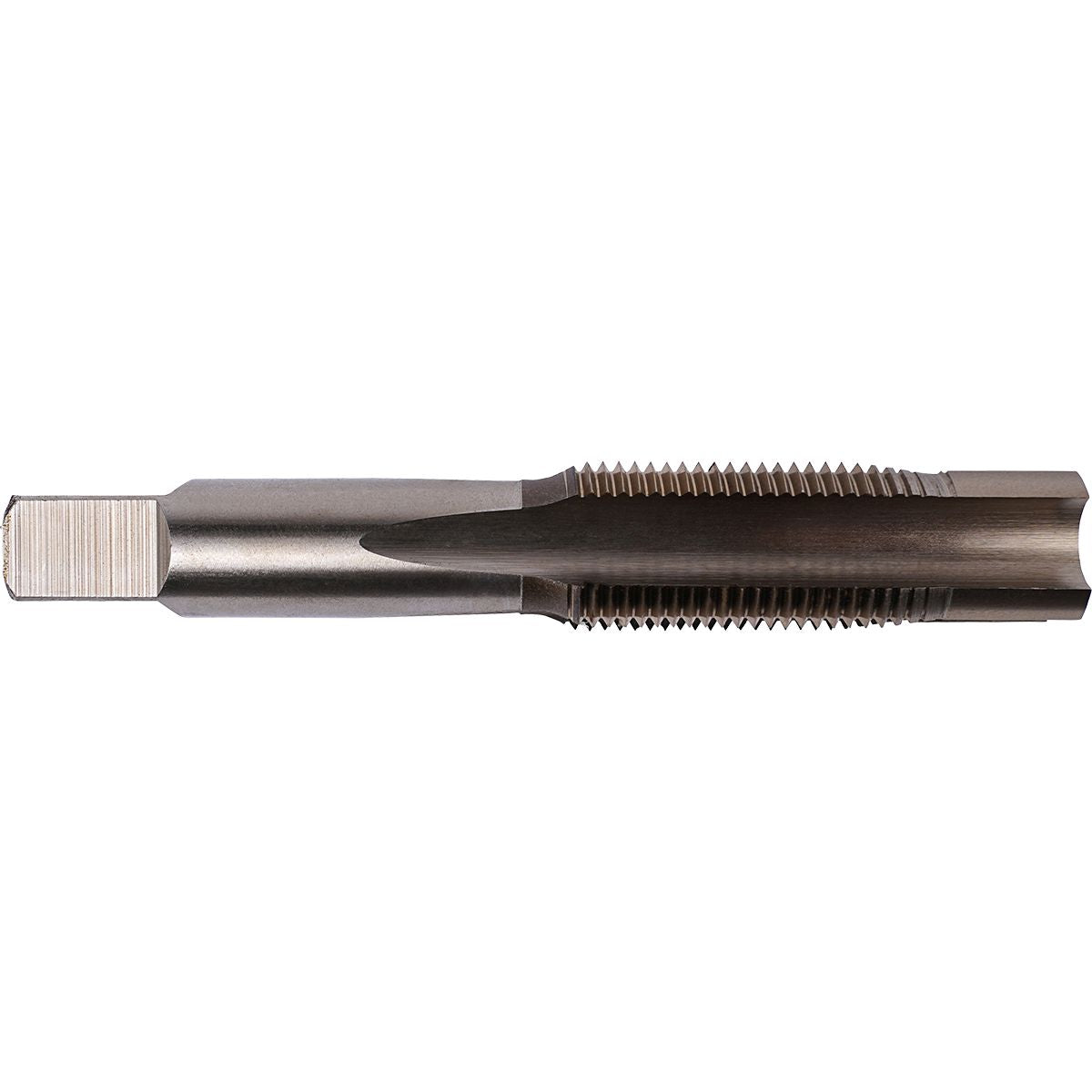

Pilotdrive Cryotap 7/8"-14 Starter Hand Tap
(Pack of
1)
SKU:DY80635028 Item#: DY80635028
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Jobber Length Drill Bit HSS 17/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/32"
Couldn't load pickup availability
3/8" Fractional Drill Bit, Jobber Length, W/Flats
Couldn't load pickup availability
Food Grade Silicone Lubricant 10oz
Couldn't load pickup availability
Lock And Load Interchangeable Small Punch and Chisel Set, 13pc
Couldn't load pickup availability
Premium Ceramic Grinding Disk 4-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Pilotdrive Cryotap M5 x 0.8 Starter Hand Tap
Couldn't load pickup availability
Pilotdrive Cryotap M14 x 1.5 Starter Hand Tap
Couldn't load pickup availability
Pilotdrive Cryotap M6 x 1.0 Starter Hand Tap
Couldn't load pickup availability
HSS Spiral Point Hand Tap M6 x 1
Couldn't load pickup availability
HSS Spiral Point Hand Tap 3/8-16
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap 5/8-11
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/64"
Couldn't load pickup availability
0.5 HP Reciprocating Air Saw
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80635028 |
|---|---|
| Type | Fractional |
| Diameter | 7/8 " |
| Pitch | 14 |
| Flutes | 4 |
| Thread Length | 2-7/32 " |
| H Limits | H4 |
| Overall Length | 4-11/16 " |
| Recommended Drill Size | 51/64 " |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.44 lb |
Product Restrictions
