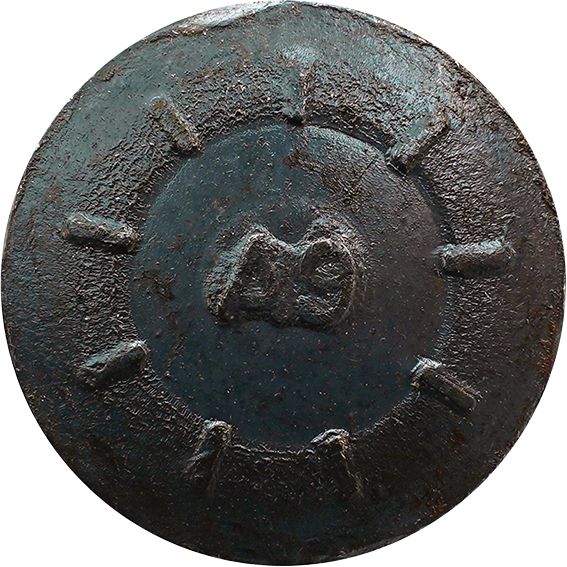

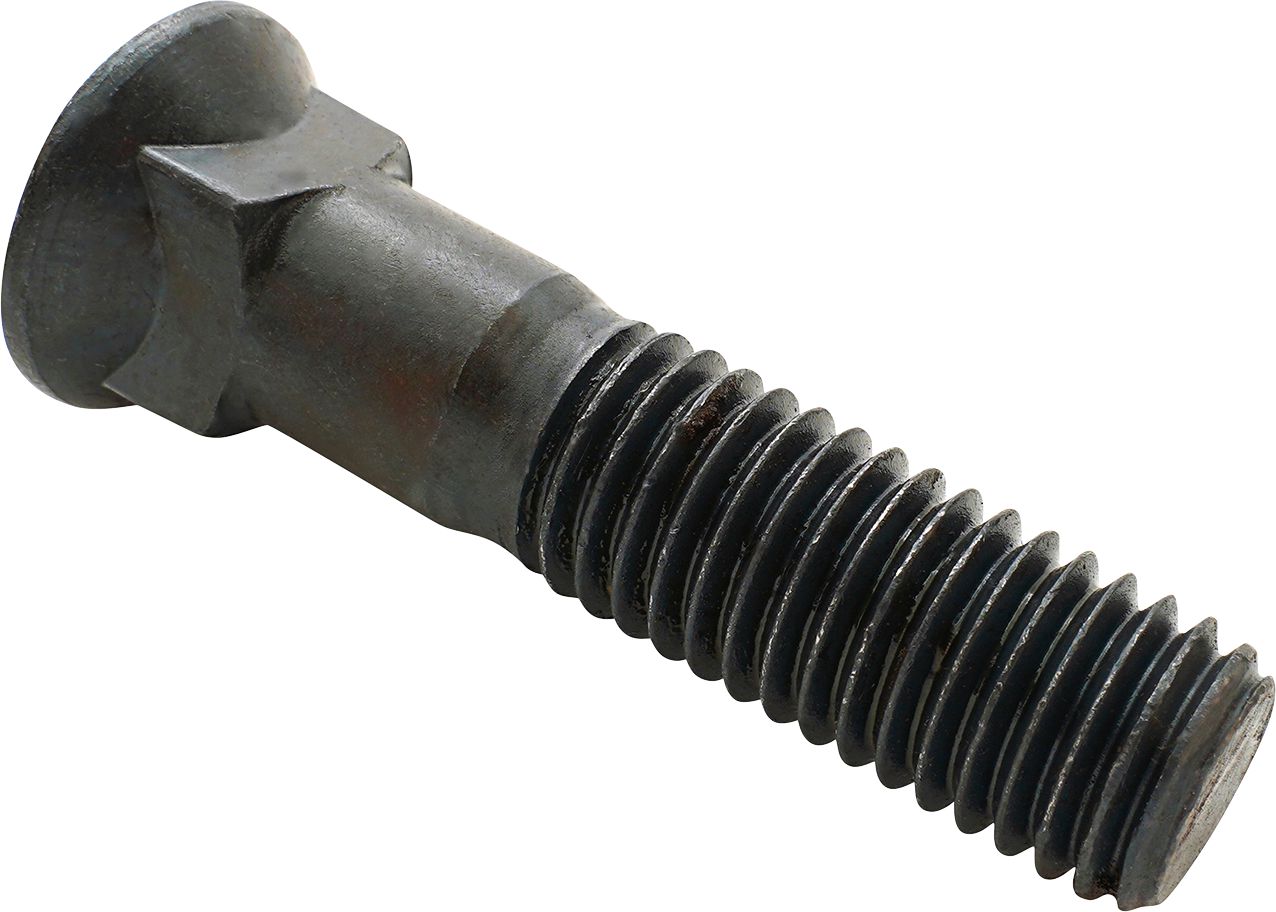

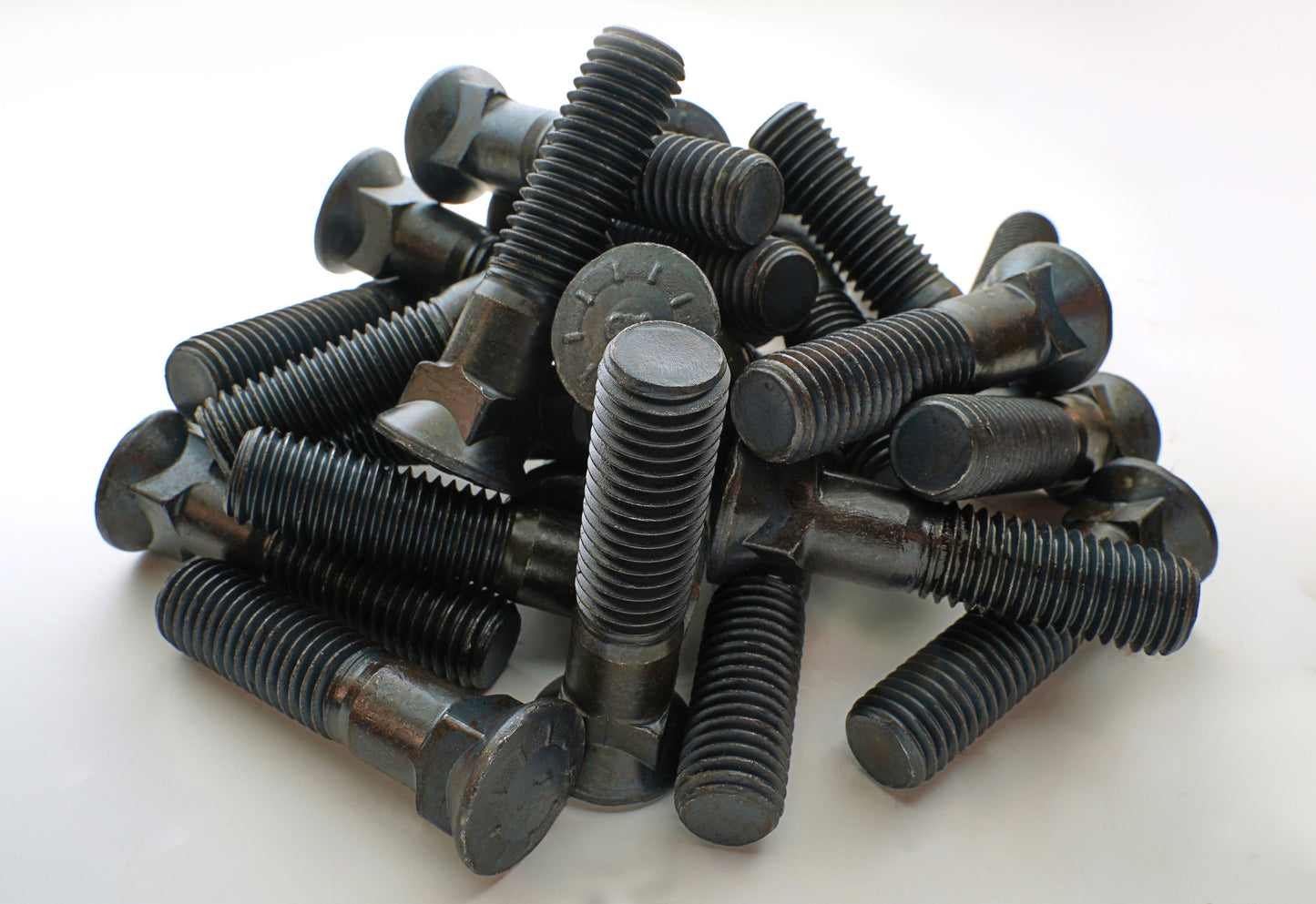

Plow Bolt, Dome Head, A9 (Grade 9), Alloy Steel, Plain Finish, Coarse Thread, 5/8-11 x 2-3/4"
(Pack of
25)
SKU:10705 Item#: 10705
• 170,000 PSI minimum tensile strength
• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Couldn't load pickup availability
Catalog page#: 3-60
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 5/16-18 x 1-1/4"
Couldn't load pickup availability
Hex Cap Screw Grade 5 5/16-18 x 3/4"
Couldn't load pickup availability
Plow Bolt High Strength A9 5/8-11 x 2-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/2-13
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/8-11
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 3/4"
Couldn't load pickup availability
Hex Cap Screw Grade 5 1/4-20 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 5 3/8-16 x 1-1/2"
Couldn't load pickup availability
Plow Bolt High Strength A9 1-8 x 3"
Couldn't load pickup availability
Plow Bolt Grade 5 Steel 7/16-14 x 1-3/4"
Couldn't load pickup availability
Plow Bolt Grade 5 Steel 1/2-13 x 3"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
N-Ferno 6997 Adhesive Body Warmers, Air Activated Heat Pad
Couldn't load pickup availability
18 V Lithium-Ion Battery Charger
Couldn't load pickup availability
Vision Pro Constant Current Flood Light AC Charger
Couldn't load pickup availability
Product Description
• 170,000 PSI minimum tensile strength• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Technical Specifications
| Item#: | 10705 |
|---|---|
| Type | Plow Bolt |
| Diameter | 5/8 " |
| Thread Pitch | 11 |
| Thread | Coarse |
| Length | 2-3/4 " |
| Head Style | Dome |
| Finish | Plain |
| Material | Alloy Steel |
| Grade | 9 |
| Tensile Strength | 170,000 PSI |
| Size | 2-3/4 |
| UNSPSC #: | 31161600 |
| TAA Compliant: | Yes |
| Weight: | 6.19 lb |
