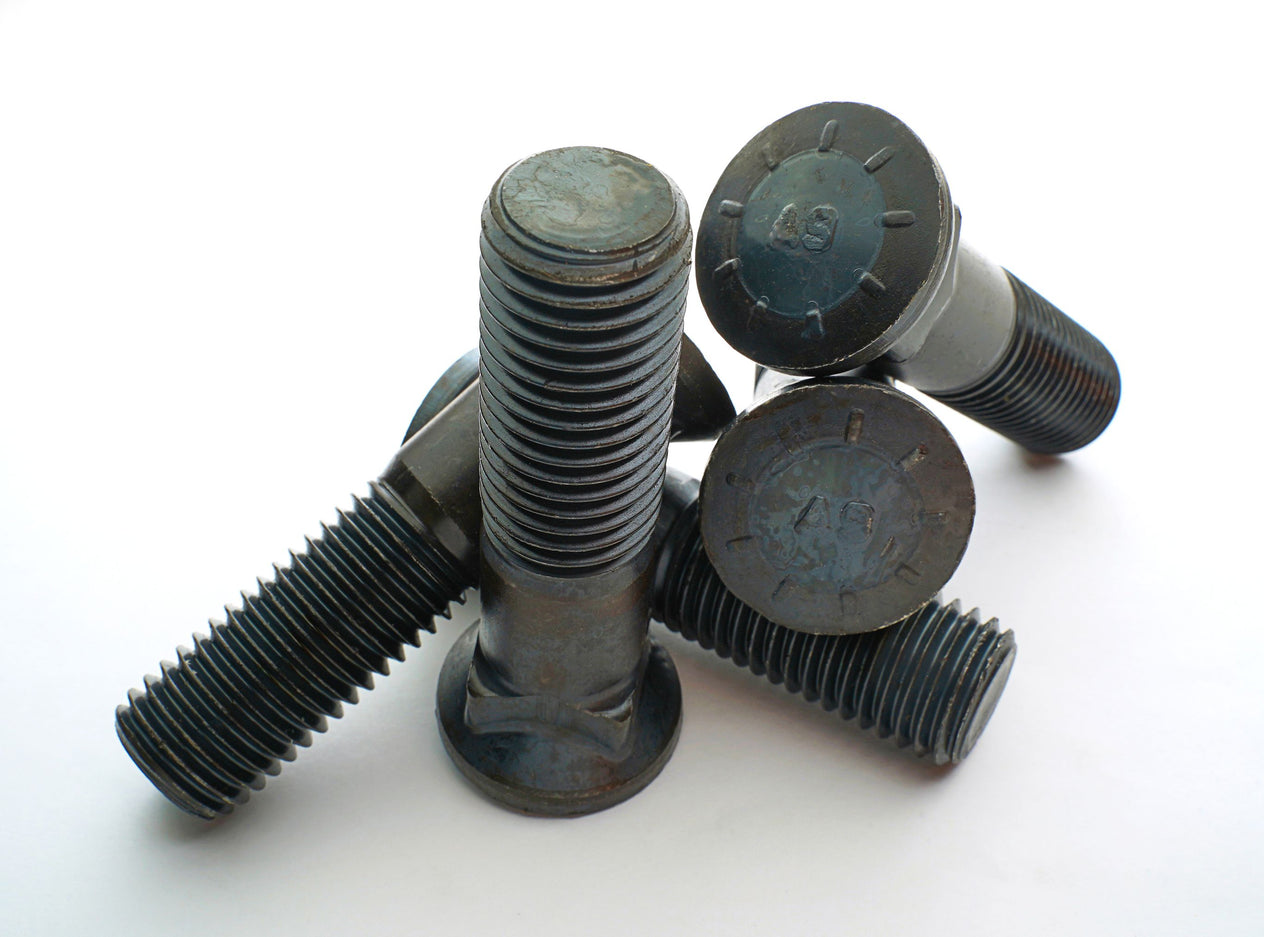

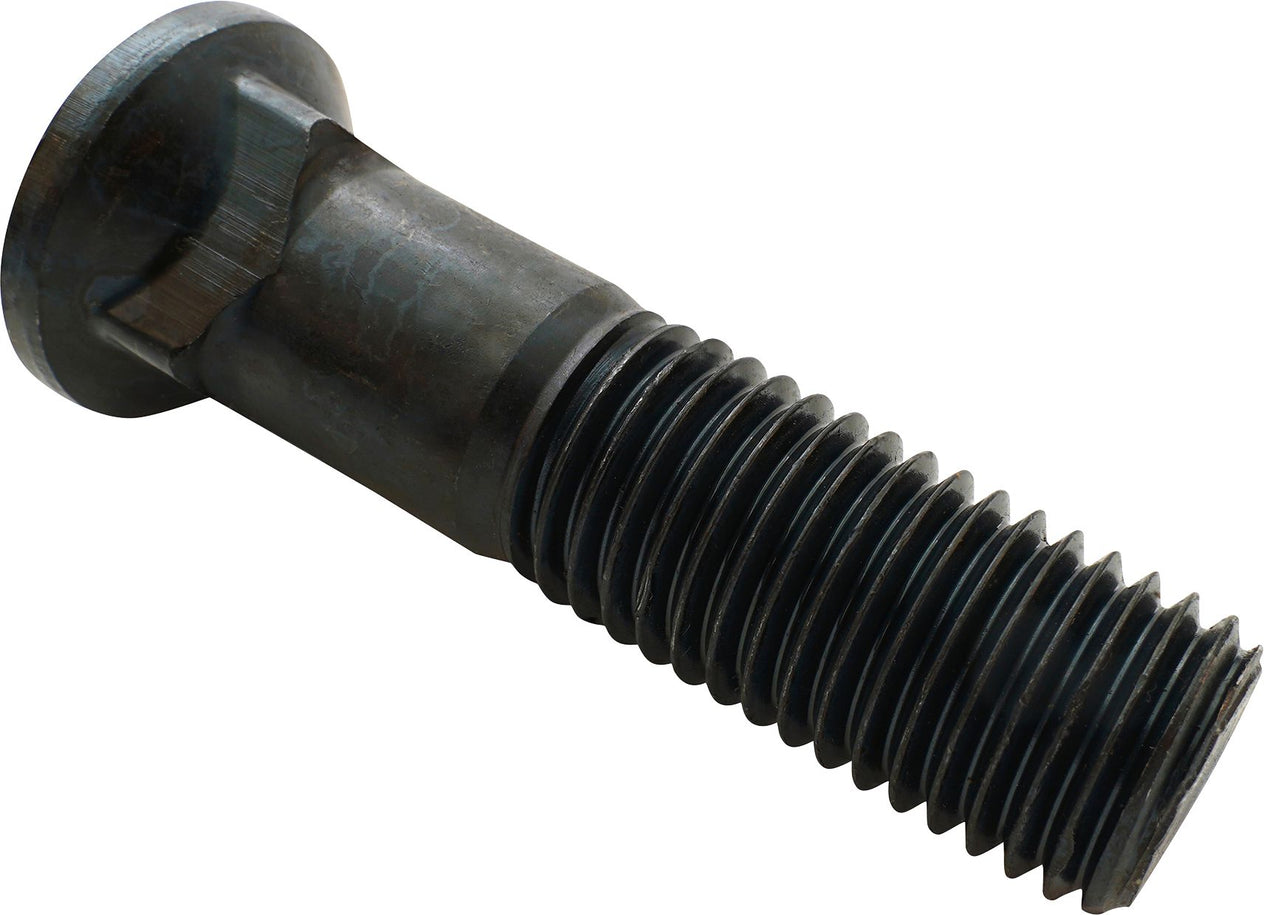

Plow Bolt, Dome Head, A9 (Grade 9), Alloy Steel, Plain Finish, Coarse Thread, 7/8-9 x 3-1/2"
(Pack of
5)
SKU:10725 Item#: 10725
• 170,000 PSI minimum tensile strength
• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Couldn't load pickup availability
Catalog page#: 3-60
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 5/8-11 x 3"
Couldn't load pickup availability
Hex Cap Screw Property Class 10.9 M6-1 x 20mm
Couldn't load pickup availability
Hex Cap Screw Grade 8 5/8-11 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/16-18
Couldn't load pickup availability
Flat Washer 316 Stainless Steel 3/8"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/16-18 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 5 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/2-13 x 1-1/2"
Couldn't load pickup availability
Plow Bolt Grade 5 Steel 7/16-14 x 2-1/2"
Couldn't load pickup availability
Plow Bolt High Strength A9 1-8 x 5"
Couldn't load pickup availability
Plow Bolt Grade 8 3/4-10 x 2-3/4"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Product Description
• 170,000 PSI minimum tensile strength• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Technical Specifications
| Item#: | 10725 |
|---|---|
| Type | Plow Bolt |
| Diameter | 7/8 " |
| Thread Pitch | 9 |
| Thread | Coarse |
| Length | 3-1/2 " |
| Head Style | Dome |
| Finish | Plain |
| Material | Alloy Steel |
| Grade | 9 |
| Tensile Strength | 170,000 PSI |
| Size | 3-1/2 |
| UNSPSC #: | 31161600 |
| TAA Compliant: | Yes |
| Weight: | 3.25 lb |
