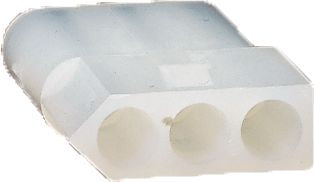

Power Connector Housing, 3-Wire Receptacle, 36 Amps, 250 Volts, Nylon
(Pack of 5)

Item#: 98796

Lawson Products

• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.

Read More
Check Availability

Catalog page#: 17-60, 17-60, 22-23, 22-23

Frequently Bought Together


Stepdown Butt Connector 24 to 22/22 to 18 AWG

Item#: 1495187

Super 33+ Series Vinyl Electrical Tape Black 3/4"

Item#: 54518

180-degree Wide Beam Head Light with Side Light

Item#: 1639013

Power Connector Housing 3-Wire Plug

Item#: 98802

Power Connector Housing 12-Wire Receptacle

Item#: 98799

Pin and Socket Connectors 137Pcs

Item#: LP537BL

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447

Spade Terminal 16 to 14 AWG Blue

Item#: 25267

Wire Connector 22 to 14 AWG Orange

Item#: 25001

Ring Tongue Terminal 12 to 10 AWG Yellow

Item#: 92815

Product Description

• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.

Technical Specifications

Item#: 98796
Type Receptacle
Maximum Voltage 250 V
Approvals UL recognized File No. E-29179 and CSA certified, File No. LR-19980
Description 3 Wire
Style Pin and Socket Power Connector Housings
UNSPSC #: 39121432
TAA Compliant: Yes
Weight: 0.04 lb
