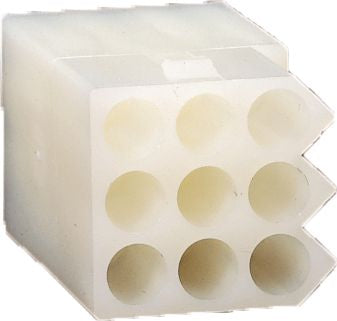

Power Connector Housing, 9-Wire Receptacle, 108 Amps, 250 Volts, Nylon
(Pack of 2)

Item#: 98798

Lawson Products

• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.

Read More
Check Availability

Catalog page#: 17-60, 17-60, 22-23, 22-23

Frequently Bought Together


Butt Connector 16 to 14 AWG Blue

Item#: 1145786

Stepdown Butt Connector 24 to 22/22 to 18 AWG

Item#: 1495187

Heat Shrink Tubing 18 to 12 AWG Black

Item#: 51880

Power Connector Housing 9-Wire Plug

Item#: 98804

Pin Terminal 22 to 18 AWG

Item#: 1145731

Pin Terminal 20 to 14 AWG

Item#: 1145961

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

Step-Down Butt Connector 16 to 14/22 to 18 AWG

Item#: 54530

Ring Tongue Terminal 22 to 18 AWG Red

Item#: 25252

Ring Tongue Terminal 22 to 18 AWG Red

Item#: 25452

Product Description

• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.

Technical Specifications

Item#: 98798
Type Receptacle
Maximum Voltage 250 V
Approvals UL recognized File No. E-29179 and CSA certified, File No. LR-19980
Description 9 Wire
Style Pin and Socket Receptacles
UNSPSC #: 39121432
TAA Compliant: Yes
Weight: 0.03 lb
