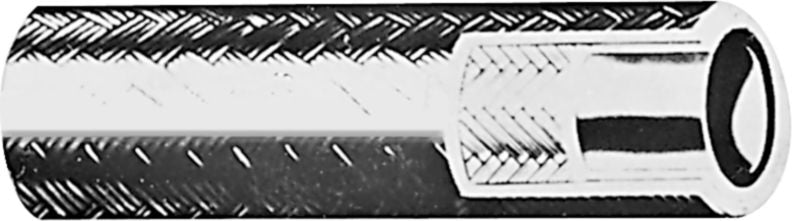

Push-on/Lock-on Low Pressure Hose, Fiber Braid Cover, 1 Fiber Braid Reinforcement, Black, 350PSI, 1/4" ID
(Pack of
500)
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.
• Temperature ranges:
– Air: 158°F (70°C)
– Water: 185°F (85°C)
– Oil: –40°F to +212°F (–40°C to +100°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
Frequently Bought Together
H20106YW
Couldn't load pickup availability
20022819
Couldn't load pickup availability
H100 General Purpose Fiber Cover Hose 3/8" Black
Couldn't load pickup availability
Push-on/Lock-on Synthetic Rubber Cover Hose 5/8"
Couldn't load pickup availability
Avagard PU Recoil Air Hose Assembly 3/8" x 25'
Couldn't load pickup availability

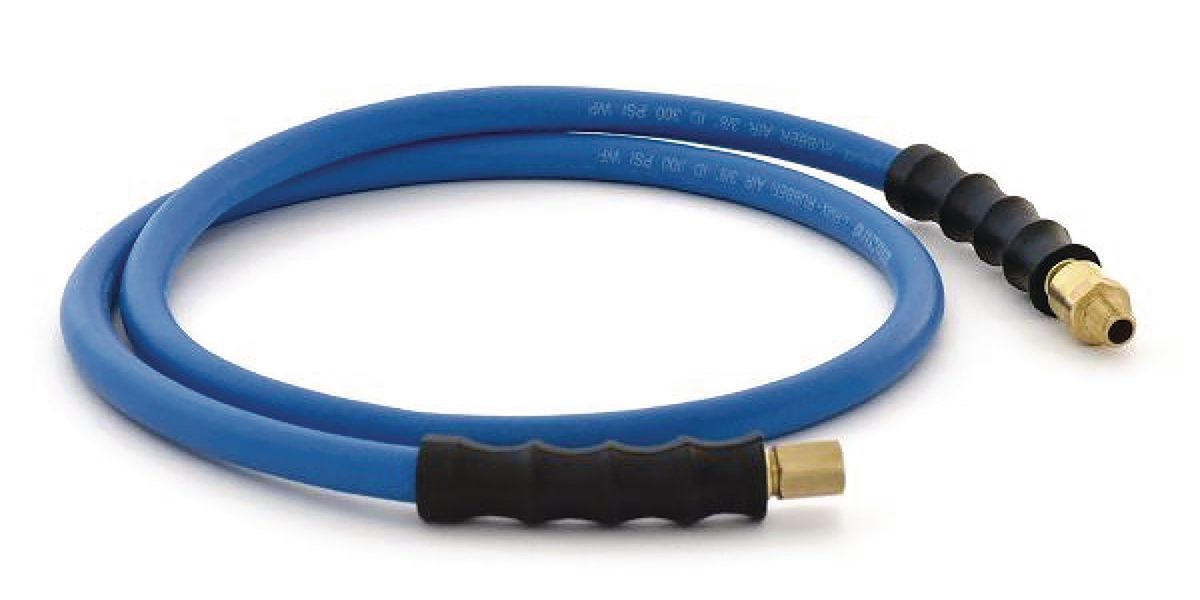

Rubber Air Hose Lead In 3/8" x 3'
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Product Description
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.• Temperature ranges:
– Air: 158°F (70°C)
– Water: 185°F (85°C)
– Oil: –40°F to +212°F (–40°C to +100°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
Technical Specifications
| Item#: | PL12100B04 |
|---|---|
| Type | Push-on/Lock-on Hose |
| I.D. | 1/4 " |
| Dash Size | -4 |
| Working Pressure | 350 |
| Burst Pressure | 1,200 PSI |
| Minimum Bend Radius | 3 " |
| Inner Tube Material | Synthetic Rubber |
| Hose Reinforcement | 1 Fiber Braid |
| Hose Cover Material | Fiber Braid |
| Fitting Series | Barb-Lok |
| Temperature | Oil: -40F to +212F, Air: +158F, Water: +185F |
| Color | Black |
| Size | 1/4 (-4) |
| Weight (Lbs./Ft.) | 0.08 |
| Vacuum Rating (Inches of Hg) | 28 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
