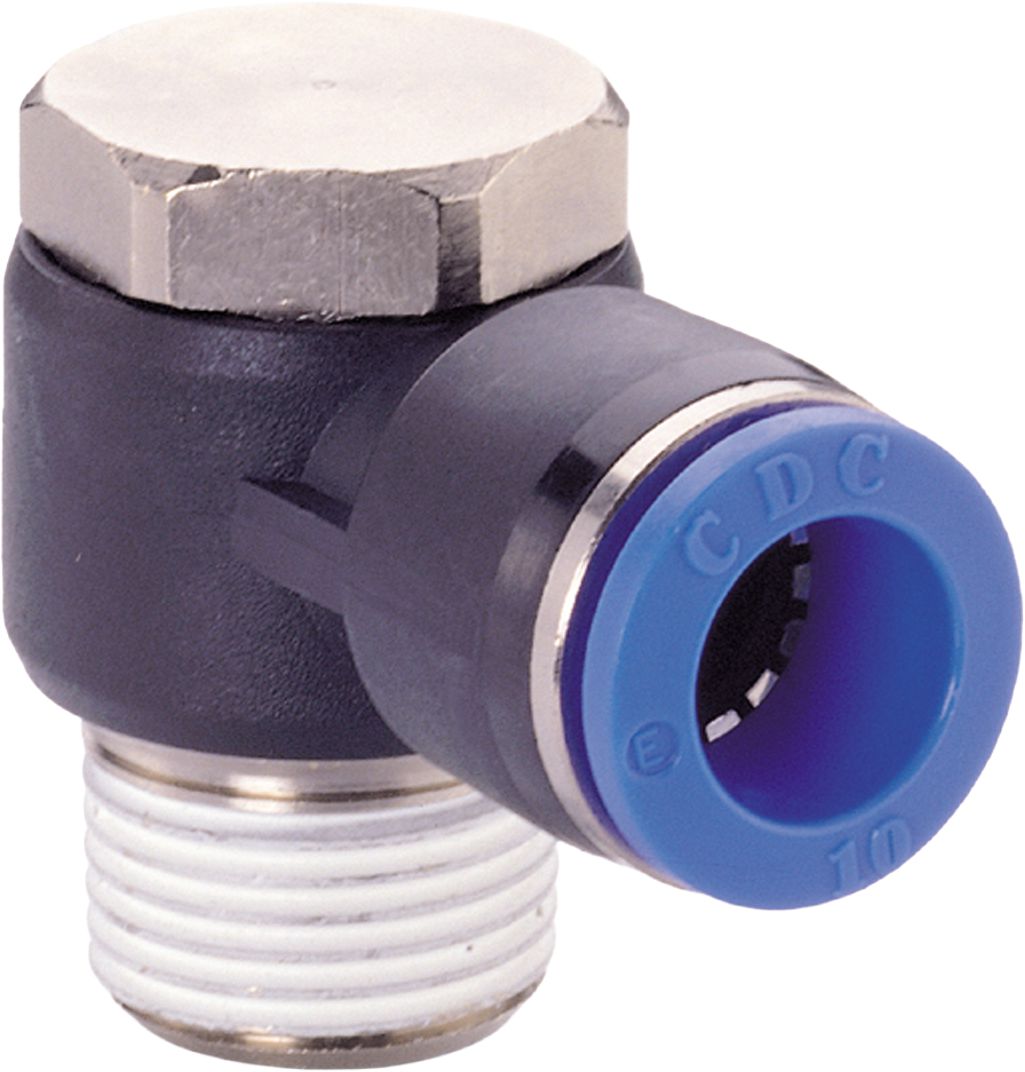

LF3000 Push-to-Connect Banjo, Nylon Body, Nickel Plated Brass Base, 1/8" x 10-32, Tube x UNF, 290PSI
(Pack of
2)
SKU:54410 Item#: 54410
Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 54410 |
|---|---|
| Manufacturer Model #: | 3118 53 20 |
| Style | LF3000 |
| Configuration | Banjo |
| Tube Size | 1/8 " |
| Thread Size | 10-32 " |
| Thread Style | UNF |
| Material | Nylon Body, Nickel-Plated Brass Base |
| Thread Length | .16 " |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
