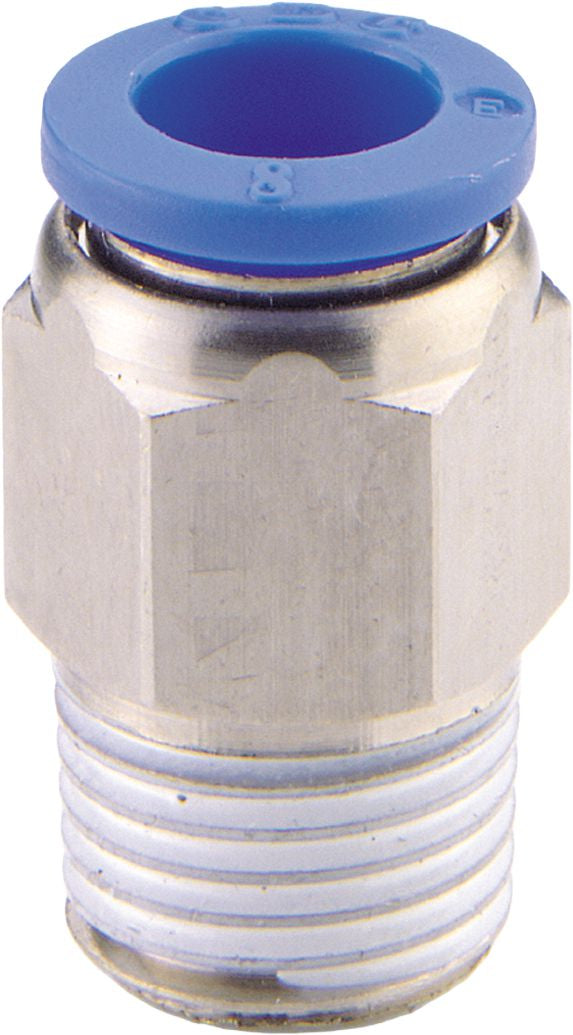

Push-to-Connect Connector, Nickel-Plated Brass, 12 mm x 3/8", Tube x Male BSPT, 290 PSI
(Pack of
2)
SKU:54342P Item#: 54342P
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Pipe Close Nipple Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Nipple Steel Black Schedule 40 Welded 1/4-18 x 7/8 " Close
Couldn't load pickup availability
Merchant Coupling Steel 1/2-14 x 1/2-14
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Push-to-Connect Extension Elbow, PBT Resin, 1/4 x 1/8"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel Plated Brass, 10mm x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel Plated Brass, 1/2 x 3/8"
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 54342P |
|---|---|
| Manufacturer Model #: | 3175 12 17 |
| Configuration | Male Connector |
| Tube Size | 12 mm |
| Thread Size | R 3/8 " |
| Thread Style | BSPT |
| Material | Nickel-Plated Brass |
| Wrench Size | 19 mm |
| Internal Hex Size | 9 mm |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.18 lb |
