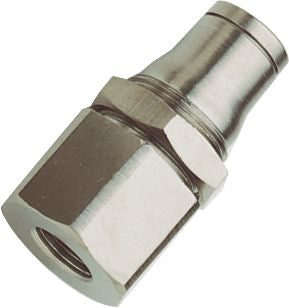

Push-To-Connect Fitting, LF3600, Female Bulkhead Connector, 10mm Tube x 3/8 BSPP, Nickel-Plated Brass
(Pack of
10)
SKU:1196473 Item#: 1196473
All materials, seals, and plating conform to FDA standards and can come in contact with food.Made of nickel-plated brass and fitted with a FKM ”O“ ring protected by a washer, LF3600 forged fittings may be used with all liquid and gaseous fluids compatible with these components, materials and temperatures up to 250° F (depending on the tube material). For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the LF3600 fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It is resistant to water, harsh detergents and other aggressive fluids and environments. As a result, the LF3600 series offers superior chemical, corrosion and abrasive resistance.
• All items in the LF3600 range are Silicone free• Working temperature: -4°F to +250°F • Working pressure: 7 to 290 PSI • Sutable fluids: all liquids and gasses compatible with the materials of the fitting • Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Construction: – Body: high phosphorus FDA chemical nickel-plated brass– Backup washer: high phosphorus FDA chemical nickel-plated brass– Collet Technology: high phosphorus FDA chemical nickel-plated brass– “O” ring: FKM (FPM) fluoroelastomer conforming to FDA standard– Base: high phosphorus FDA chemical nickel-plated brass
Frequently Bought Together
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Product Description
All materials, seals, and plating conform to FDA standards and can come in contact with food.Made of nickel-plated brass and fitted with a FKM ”O“ ring protected by a washer, LF3600 forged fittings may be used with all liquid and gaseous fluids compatible with these components, materials and temperatures up to 250° F (depending on the tube material). For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the LF3600 fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It is resistant to water, harsh detergents and other aggressive fluids and environments. As a result, the LF3600 series offers superior chemical, corrosion and abrasive resistance.• All items in the LF3600 range are Silicone free• Working temperature: -4°F to +250°F • Working pressure: 7 to 290 PSI • Sutable fluids: all liquids and gasses compatible with the materials of the fitting • Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Construction: – Body: high phosphorus FDA chemical nickel-plated brass– Backup washer: high phosphorus FDA chemical nickel-plated brass– Collet Technology: high phosphorus FDA chemical nickel-plated brass– “O” ring: FKM (FPM) fluoroelastomer conforming to FDA standard– Base: high phosphorus FDA chemical nickel-plated brass
Technical Specifications
| Item#: | 1196473 |
|---|---|
| Manufacturer Model #: | 3636 10 17 |
| Style | LF3600 |
| Configuration | Female Bulkhead Connector |
| Tube Size | 10 mm |
| Thread Size | G3/8 " |
| Thread Style | BSPP |
| Material | Nickel-Plated Brass |
| Wrench Size | 22 mm |
| Bulkhead Nut Size | 27 mm |
| Panel Hole Diameter | 21 mm |
| Panel Thickness | 6 mm |
| Working Pressure | 7 to 290 PSI |
| Temperature Range | -4 to 250 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
