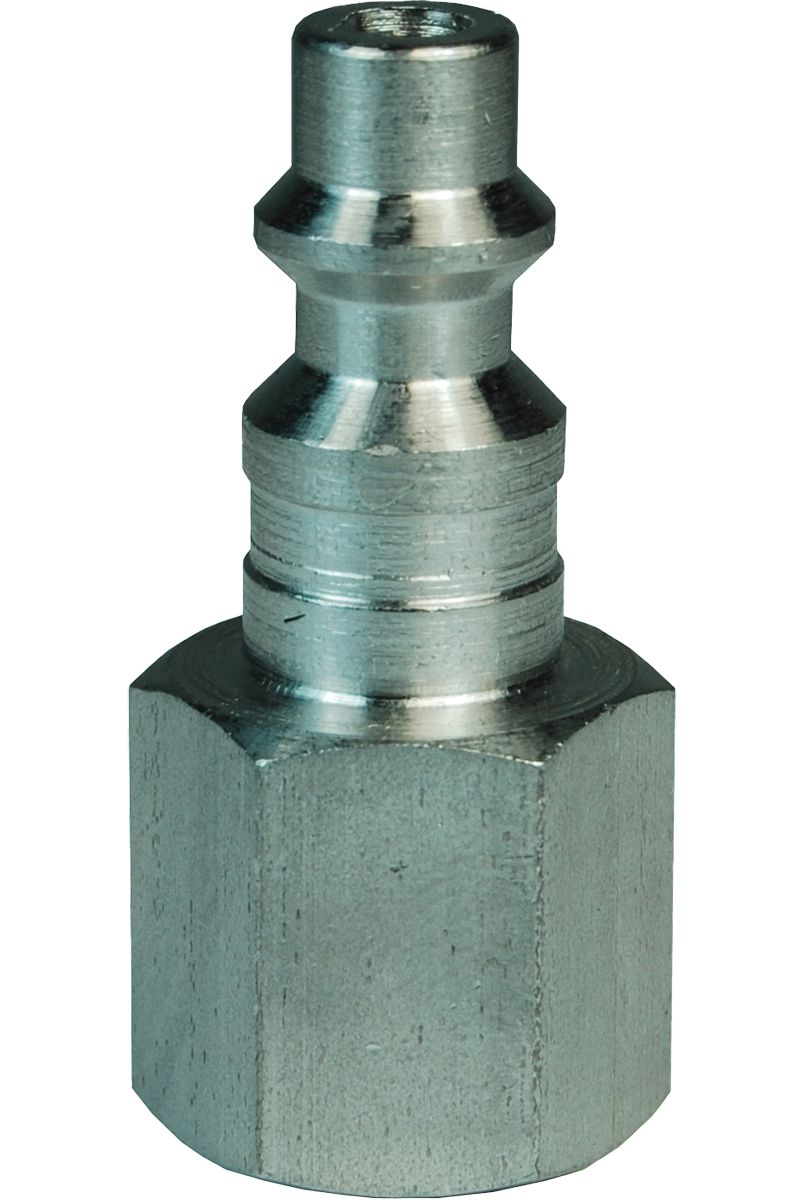

DF-Series Industrial Pneumatic Quick Disconnect Plug, 303 Stainless Steel, Female NPTF, 1/4" Body Size, 3/8-18 Thread Size
(Pack of
1)
SKU:1677201 Item#: 1677201
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.
• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Frequently Bought Together
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Heavy-Duty Quick Disconnect Plug Steel 1/4 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 5/8" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 1/2" x 1/4-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 5/8" x 1/2-14
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Technical Specifications
| Item#: | 1677201 |
|---|---|
| Manufacturer Model #: | D2F3-S |
| Description | Industrial Quick Disconnect |
| Type | Plug |
| Style | Industrial |
| Body Size | 1/4 " |
| Thread Style | NPTF |
| Thread Size | 3/8 " |
| Working Pressure | 500 PSI |
| Material | 303 Stainless Steel |
| Length | 1.66 " |
| Hex Size | 7/8 " |
| Dixon Number | D2F3-S |
| UNSPSC #: | 31163101 |
| TAA Compliant: | Yes |
| Weight: | 0.1543 lb |
