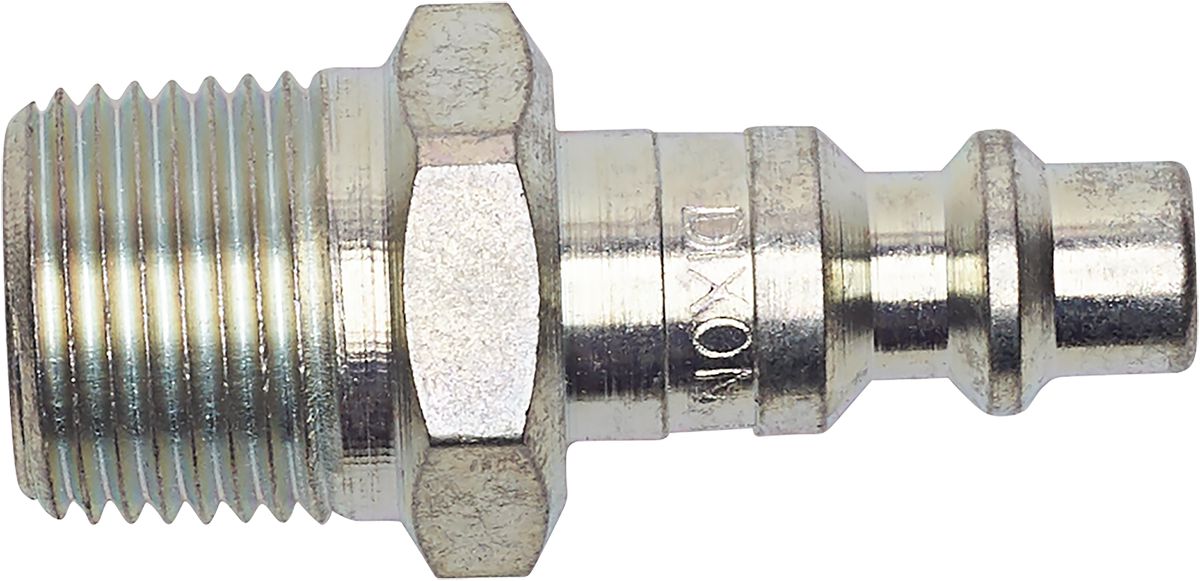

Heavy-Duty Quick Disconnect Plug, Steel, Standard Industrial, Male NPTF, 1/4" Body Size, 3/8-18" Thread Size
(Pack of
2)
SKU:29031 Item#: 29031
Easily connect and disconnect to fluid lines with this handy quick disconnect plug. Stainless steel design resists corrosion and a built-in sleeve guard minimizes accidental disconnect. This heavy-duty plug features a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Use with hydraulic systems, pneumatic tools, pressure washers and other applications where frequent hose disconnections are required.
• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Standard or Industrial Interchange Design
• Sized to fit 1/4-inch couplers and fittings
Standard or Industrial Interchange Design
Frequently Bought Together
Quick Disconnect Coupler Steel 3/8" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Water Line Coupling Nipple Brass 3/4"
Couldn't load pickup availability
Hose Barb Brass 1/2" x 3/8-18
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
Hose Clamp 304 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Water Line Coupling Nipple Brass 3/4"
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
Easily connect and disconnect to fluid lines with this handy quick disconnect plug. Stainless steel design resists corrosion and a built-in sleeve guard minimizes accidental disconnect. This heavy-duty plug features a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Use with hydraulic systems, pneumatic tools, pressure washers and other applications where frequent hose disconnections are required.• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Standard or Industrial Interchange Design
• Sized to fit 1/4-inch couplers and fittings
Standard or Industrial Interchange Design
Technical Specifications
| Item#: | 29031 |
|---|---|
| Description | Heavy-Duty Quick Disconnect |
| Type | Nipple |
| Style | Standard Industrial |
| Body Size | 1/4 " |
| Thread Style | Male NPTF |
| Thread Size | 3/8-18 |
| Working Pressure | 300 PSI |
| Material | Steel |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.22 lb |
