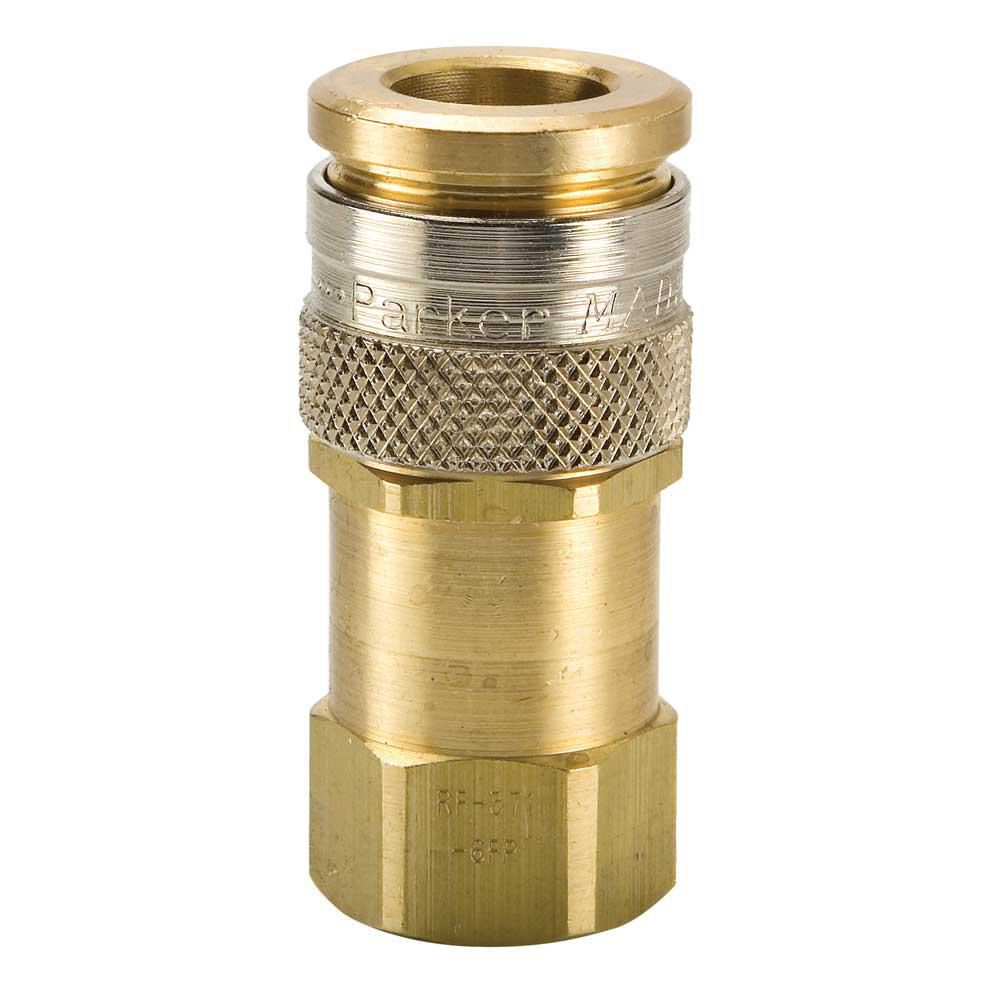

RF Series Coupler, Brass, European High-Flow, 300PSI, Female NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:1268626 Item#: 1268626
RF Series Pneumatic Couplers are designed to increase flow and reduce pressure drop through the coupling. RF nipples have up to 2-1/2 times larger flow area than standard industrial interchange nipples. The increased flow results in greater tool efficiency and decreased air costs. Couplers have brass bodies with nickel plated steel sleeves. RF nipples are steel.
• Aerodynamic valve design
• Steel nipples are case hardened
• Flow rates on 1/4” is greater than many 3/8” body size couplers
• Flow rates on 3/8” is greater than many 1/2” body size couplers
• Integral sleeve guard protects against accidental disconnection
• Functionally interchanges with a common high-flow European design
• Air compressors
• Pneumatic tools
• Drop-down air lines
Frequently Bought Together
Quick Disconnect Coupler Brass 3/8" x 3/8-18
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Brass Coupler With Steel Sleeve 1/4" x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
Couldn't load pickup availability
Garden Hose End Brass 5/8" x 3/4-11-1/2
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Product Description
RF Series Pneumatic Couplers are designed to increase flow and reduce pressure drop through the coupling. RF nipples have up to 2-1/2 times larger flow area than standard industrial interchange nipples. The increased flow results in greater tool efficiency and decreased air costs. Couplers have brass bodies with nickel plated steel sleeves. RF nipples are steel.• Aerodynamic valve design
• Steel nipples are case hardened
• Flow rates on 1/4” is greater than many 3/8” body size couplers
• Flow rates on 3/8” is greater than many 1/2” body size couplers
• Integral sleeve guard protects against accidental disconnection
• Functionally interchanges with a common high-flow European design
• Air compressors
• Pneumatic tools
• Drop-down air lines
Technical Specifications
| Item#: | 1268626 |
|---|---|
| Manufacturer Model #: | RF-251-4FP |
| Type | Coupler |
| Style | European High-Flow |
| Body Size | 1/4 " |
| Thread Style | Female NPSF |
| Thread Size | 1/4-18 |
| Working Pressure | 300 PSI |
| Material | Brass |
| Length | 2.19 " |
| Seal Material | Nitrile |
| Hex Size | 0.81 " |
| Locking Mechanism | 4 Ball |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
