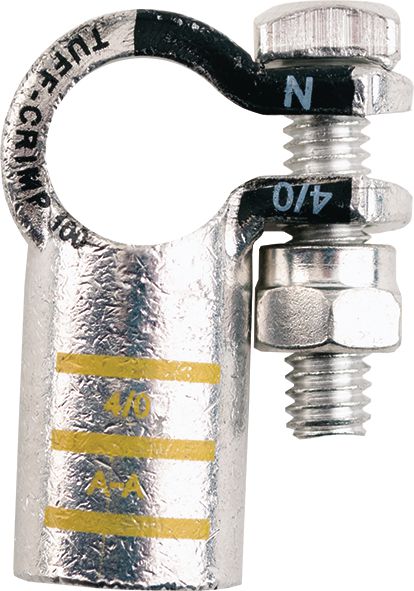

Post-Top Right Elbow Battery Terminal, 4/0 AWG, Yellow, Negative Polarity, Copper, Tin Plated, Long Barrel
(Pack of
5)
SKU:41424 Item#: 41424
A versatile, standard-grade terminal offering with straight barrels, flags, elbows and lugs.
• 100% copper battery terminals (lead-free)
• Tin-plated for strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Long barrel with crimp guide lines
• Top-post terminals furnished with a tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• RoHS compliant
• Exceeds SAE Standard J-1811
Tin-plated for protection
Color-coded and marked for polarity
Long barrel 2-crimp design
Chamfered barrel
Couldn't load pickup availability
Catalog page#: 18-7
Frequently Bought Together
Conversion Terminal Stud-to-Post Negative
Couldn't load pickup availability
Battery Terminal 4 AWG Straight Barrel Negative
Couldn't load pickup availability
Extreme Duty Battery Cable Butt Connector 2 AWG
Couldn't load pickup availability
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
DT Series Pin Wedgelock 13A 3 Contacts
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 6 AWG Blue 5/16"
Couldn't load pickup availability
Trailer End Plug Connector 7-Way
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Orange
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Blue
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Yellow
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Product Description
A versatile, standard-grade terminal offering with straight barrels, flags, elbows and lugs.• 100% copper battery terminals (lead-free)
• Tin-plated for strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Long barrel with crimp guide lines
• Top-post terminals furnished with a tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• RoHS compliant
• Exceeds SAE Standard J-1811
Tin-plated for protection
Color-coded and marked for polarity
Long barrel 2-crimp design
Chamfered barrel
Technical Specifications
| Item#: | 41424 |
|---|---|
| Style | Right Elbow |
| Cable Gauge | 4/0 AWG |
| Color | Yellow |
| Polarity | Negative |
| Plating | Tin |
| Type | Eco-Max Battery Terminals |
| UNSPSC #: | 39121454 |
| TAA Compliant: | No |
| Weight: | 0.86 lb |
