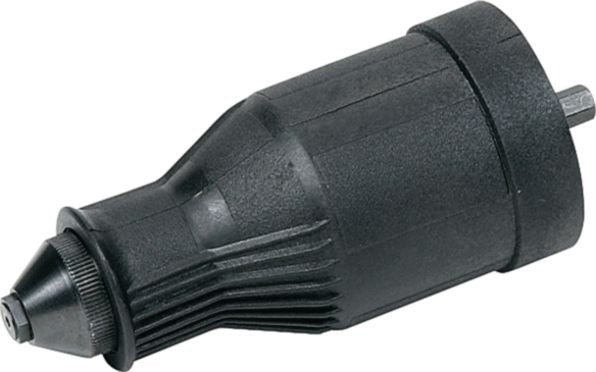

Rivet Installation Tool with Three Nosepieces 1/8, 5/32 and 3/16", 5.5" Length
(Pack of
1)
SKU:27814 Item#: 27814
• The drill attachment that easily converts cordless, electric and pneumatic drills into rivet guns
• RiveDrill™ can be quickly inserted into a 3/8" reversible power drill and can set standard pull rivets up to 3/16"
Includes 1/8", 5/32" and 3/16" nosepieces along with complete operating instructions
• Rivet capacities: 1/8", 5/32" and 3/16" for standard aluminum rivets; 1/8" and 5/32" for standard steel rivets; 1/8" for standard stainless steel rivets
• Hex shank size: 5/16"
• Weight: 0.618 lbs. (280g)
• Length: 5.5" (1,441mm)
• Dia.: 2.4" (60mm)
• Battery for cordless drills: 12V or larger
Operating Instructions
1. Choose correct nosepiece (1/8", 5/32" or 3/16") for blind rivet size, and thread on to end of knurled frame head.

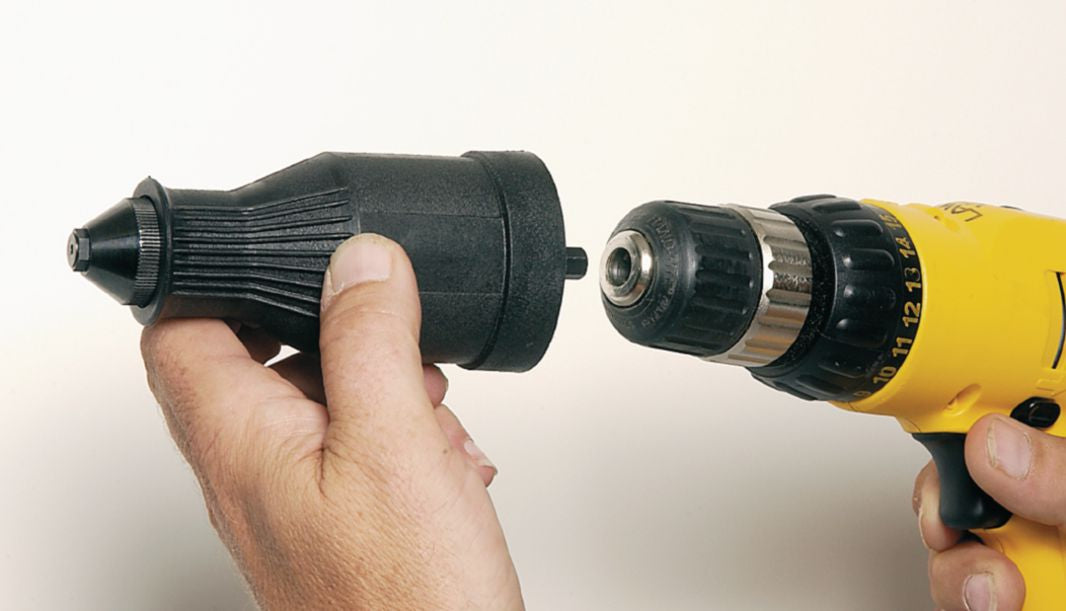

2. Insert hex shaft into drill chuck and tighten.
3. Pull back on telescopic protective case until it stops.
4. If hole on frame head is open, reverse drill direction until hole is covered by internal jaw.
5. Set drill in forward direction, insert rivet in nosepiece, and place rivet in application.
6. Hold telescopic protective case in one hand, and pull drill trigger with other hand to set the rivet.
7. After rivet is set, switch drill to reverse mode, and pull trigger until rivet mandrel is ejected and a clicking sound is heard. This allows the jaws to return to a riveting position.
CAUTION: When operating always wear safety glasses to protect your eyes.
Couldn't load pickup availability
Catalog page#: 7-29
Frequently Bought Together
Product Description
• The drill attachment that easily converts cordless, electric and pneumatic drills into rivet guns• RiveDrill™ can be quickly inserted into a 3/8" reversible power drill and can set standard pull rivets up to 3/16"
Includes 1/8", 5/32" and 3/16" nosepieces along with complete operating instructions
• Rivet capacities: 1/8", 5/32" and 3/16" for standard aluminum rivets; 1/8" and 5/32" for standard steel rivets; 1/8" for standard stainless steel rivets
• Hex shank size: 5/16"
• Weight: 0.618 lbs. (280g)
• Length: 5.5" (1,441mm)
• Dia.: 2.4" (60mm)
• Battery for cordless drills: 12V or larger
Operating Instructions
1. Choose correct nosepiece (1/8", 5/32" or 3/16") for blind rivet size, and thread on to end of knurled frame head.
2. Insert hex shaft into drill chuck and tighten.
3. Pull back on telescopic protective case until it stops.
4. If hole on frame head is open, reverse drill direction until hole is covered by internal jaw.
5. Set drill in forward direction, insert rivet in nosepiece, and place rivet in application.
6. Hold telescopic protective case in one hand, and pull drill trigger with other hand to set the rivet.
7. After rivet is set, switch drill to reverse mode, and pull trigger until rivet mandrel is ejected and a clicking sound is heard. This allows the jaws to return to a riveting position.
CAUTION: When operating always wear safety glasses to protect your eyes.
Technical Specifications
| Item#: | 27814 |
|---|---|
| Type | Rivet Tool |
| Size | 1/8, 3/16 " |
| Structural Rivet Capability | No |
| UNSPSC #: | 27112402 |
| TAA Compliant: | Yes |
| Weight: | 0.74 lb |
