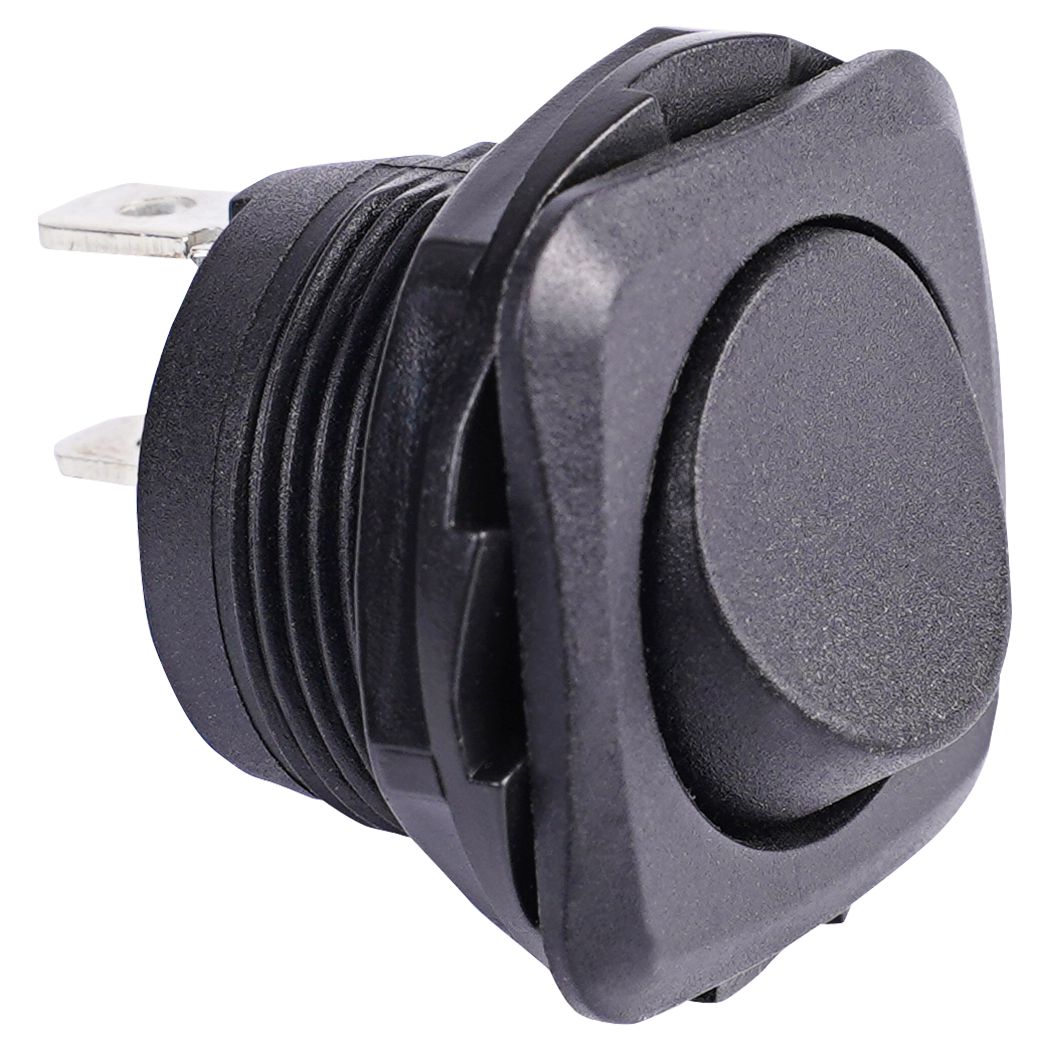

Home Electrical Wiring Devices Switches Rocker Switch SPST, 14V DC 20A , 28V DC 10A, Black Screw Term Sqr (On)
Electrical

Rckr Swtch, Singl Pole Singl Thrw, 14V DC 20A , 28V DC 10A , 2 Blde Term, No Markgs,Scrw-in Rnd Rckr-Sq Frame, Momentry (On)-Off
(Pack of 1)

Item#: DY41120047

Lawson Products

• Rating: 14V DC 20A, 28V DC 10A
• Terminal: 0.187" quick-change silver-plated copper alloy
• Actuator Material: Nylon 66
• Operating Temp: -13° – +185°F (-25°– +85°C)
• Circular Panel Cut Out: 0.795" (20.2mm)
• Max Mount Depth: 0.236" (6mm)

Read More
Check Availability

Frequently Bought Together


MINI Fuse 30A Green

Item#: 95706

Connector Housing 20A 2-Wire Tower

Item#: 96898

Female Quick Slide Terminal 16 to 14 AWG Blue

Item#: 81114

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

Sealed Toggle Switch SPDT 18A 125V On-None-On

Item#: 90374

Rocker Switch DPST 25A 12VDC On-Off

Item#: 86087

Universal Buzzer Switch 12V

Item#: 84484

Rocker Switch SPST, 14V DC 20A , 28V DC 10A, Red LED Sc Term Sqr, On-O

Item#: DY41120048

Rocker Switch SPST 20A 12V On-Amber/Off-Clear

Item#: 52795

Universal Toggle Switch DPDT 15A 125V

Item#: 90367

Product Description

• Rating: 14V DC 20A, 28V DC 10A
• Terminal: 0.187" quick-change silver-plated copper alloy
• Actuator Material: Nylon 66
• Operating Temp: -13° – +185°F (-25°– +85°C)
• Circular Panel Cut Out: 0.795" (20.2mm)
• Max Mount Depth: 0.236" (6mm)

Technical Specifications

Item#: DY41120047
Style Rocker Switches- Screw-In Round Rocker/Square Frame
Description Rocker Switches- Snap-In Round Rocker, Single Pole/Single Throw W/No Markings
Pole Single
Throw Single
Terminal Connection 187" Quick-Change Silver-Plated Copper Alloy
Switch Positions Momentary On - Off
Electrical Rating Amps at Given Voltage (DC Current) 14V DC 20A , 28V DC 10A
Material Nylon 66
Thread Screw-In
Panel Hole Diameter .795 X .236 "
Type Switches
Maximum Mount Depth .236" (6mm)
Circular Panel Cut Out .795" (20.2mm)
UNSPSC #: 39122200
TAA Compliant: No
Weight: 0.02 lb
