Home Chain Roller Chain, Single Strand, Ultimate Power, Steel, Industry No. 80HK
Chain

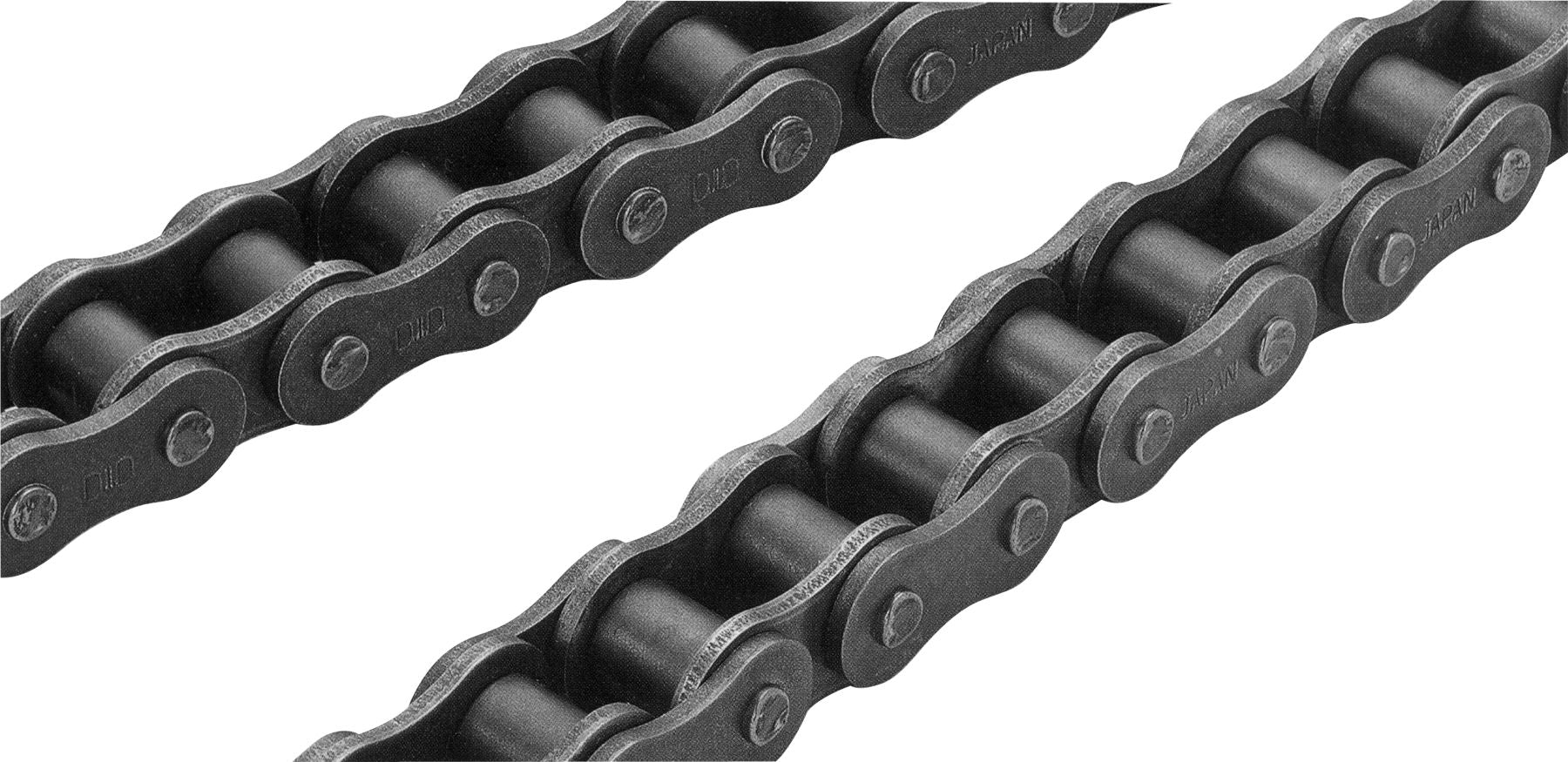

Roller Chain, Single Strand, Ultimate Power, Steel, Industry No. 80HK, 1" Pitch, 21,560 lbs Average Tensile Strength
(Pack of 10)

Item#: 1443485

Daido®

Ultimate Power roller chain conform to the Heavy type of the ANSI roller chain.Their inner and outer plates are equal in thickness to those of the next larger size of standard roller chain.
• Approximately 20% higher tensile strength
• Approximately 15% higher maximum allowable load
• Heavy-duty applications at low speeds

Read More

Catalog page#: 15-61

Frequently Bought Together


Roller Chain, Double Strand, Steel, Industry No. 25-2

Item#: 1443579

Roller Chain, Single Strand, Steel, Industry No. 120

Item#: 1443565

Roller Chain, Single Strand, Steel, Nickel Plated, Industry No. 25

Item#: 1443542

Tuff-Edge® Web Sling, Polyester, Silver, 6' Length

Item#: 1412718

Clevis Slip Hook, Grade 70, 3/8", 6,600 lb WLL

Item#: 1429869

Screw Pin Anchor Shackle, 1/4", 1,000 lb WLL

Item#: 1424878

Connecting Link, Single Strand, Steel, Industry No. 40

Item#: 85370

Connecting Link, Single Strand, Steel, Industry No. 35

Item#: 85369

Offset Link (Half Link), Single Strand, Steel, Industry No. 40

Item#: 85383

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: 88437

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Product Description

Ultimate Power roller chain conform to the Heavy type of the ANSI roller chain.Their inner and outer plates are equal in thickness to those of the next larger size of standard roller chain.
• Approximately 20% higher tensile strength
• Approximately 15% higher maximum allowable load
• Heavy-duty applications at low speeds

Technical Specifications

Item#: 1443485
Type Single Strand
Style Extra-Heavy
Material Steel
Finish Plain
Industry Number 80HK
Pitch 1 "
Roller Width 0.625 "
Roller Diameter 0.625 "
Plate Thickness 0.157 "
Plate Height 0.945 "
Length 10 ft
Minimum Tensile Strength 18,260 lb
Average Tensile Strength 21,560 lb
Maximum Load 3,740 lb
UNSPSC #: 31151603
TAA Compliant: Yes
