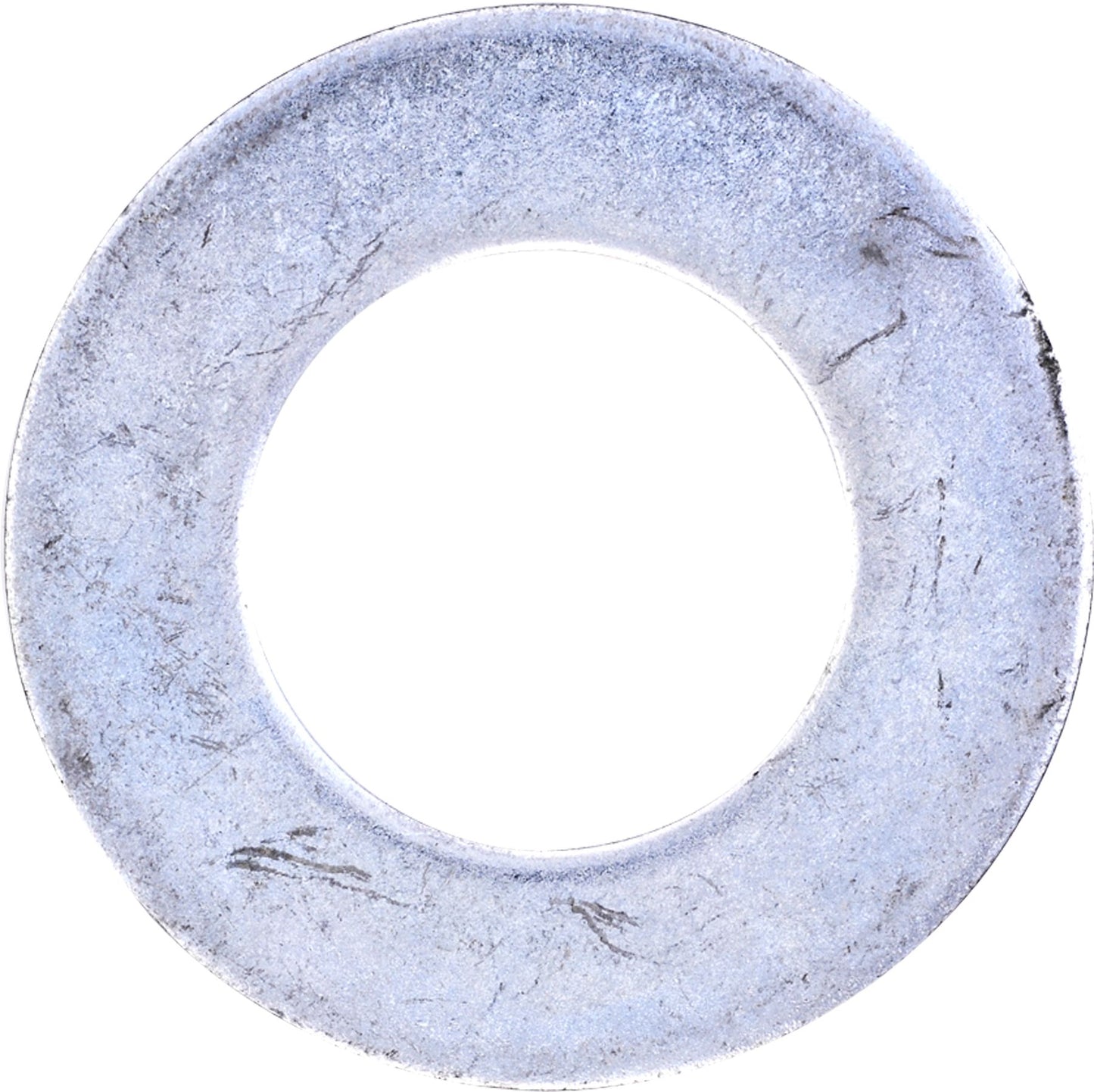

ASTM F436 SAE Structural Flat Washer, High Strength, Steel, Zinc Finish, 1-1/2" ID, 2-3/4" OD, 5/32" Thickness
(Pack of
10)
SKU:58870 Item#: 58870
• Medium carbon steel
• Heat-treated, quenched and tempered
• Zinc-plated
• SAE manufactured to ASTM Specification F436
• Designed for use with Grade 5 and Grade 8 Cap Screws
Couldn't load pickup availability
Catalog page#: 3-33
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Structural Flat Washer 11/16"
Couldn't load pickup availability
SAE Structural Flat Washer High Strength 2-1/4"
Couldn't load pickup availability
Structural Flat Washer 5/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Product Description
• Medium carbon steel• Heat-treated, quenched and tempered
• Zinc-plated
• SAE manufactured to ASTM Specification F436
• Designed for use with Grade 5 and Grade 8 Cap Screws
Technical Specifications
| Item#: | 58870 |
|---|---|
| Nominal Size | 1-3/8 " |
| Finish | Bright Zinc |
| Material | Carbon Steel |
| I.D. | 1-1/2 " |
| O.D. | 2-3/4 " |
| Thickness | 5/32 " |
| Specifications | ASTM F436 |
| Minimum Thickness | 0.136 " |
| Maximum Thickness | 0.177 " |
| Type | Structural Flat Washer |
| UNSPSC #: | 31161807 |
| TAA Compliant: | Yes |
| Weight: | 1.65 lb |
