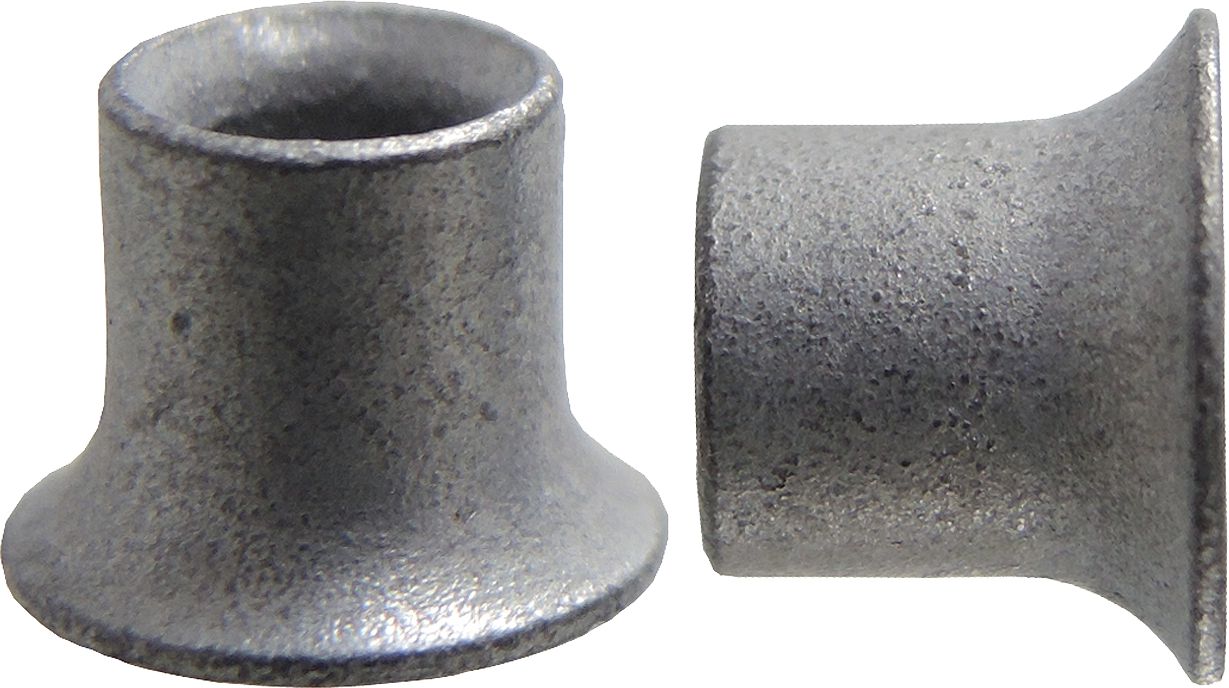

Self-Piercing Rivet, Used on Aluminum Body Panels, Coated Steel, Tin/Zinc Plated, 5.3mm Body Diameter, 6mm Length
(Pack of
25)
SKU:1489002 Item#: 1489002
Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.
Couldn't load pickup availability
Catalog page#: 26-317
Frequently Bought Together
P Series Lead Clip-On Wheel Weight 1-1/4oz
Couldn't load pickup availability
Symphony All Season Blade 22"
Couldn't load pickup availability
MCN Series Lead Clip-On Wheel Weight 1-1/4 oz
Couldn't load pickup availability
Front License Plate to Bumper Cover Split Rivet
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Gray 12mm
Couldn't load pickup availability
Slotted Hex Washer Head License Plate Screw Steel
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 1-1/4oz
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 3/4oz
Couldn't load pickup availability
MCN Series Lead Clip-On Wheel Weight 1 oz
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Window Regulator Roller Rivet
Couldn't load pickup availability
Ford OEM Self-Piercing Rivet
Couldn't load pickup availability
Dome Head Rivet M4.7-9.5 Grip
Couldn't load pickup availability
Product Description
Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.Technical Specifications
| Item#: | 1489002 |
|---|---|
| Type | Self-Piercing Rivet |
| Body Diameter | 5.3 mm |
| OEM Number | Tesla OEM No. 1026940-00-A |
| Rivet Length | 6.0 mm |
| Quantity Per Package | 25.0000 |
| UNSPSC #: | 31162200 |
| TAA Compliant: | No |
| Weight: | 0.04 lb |
