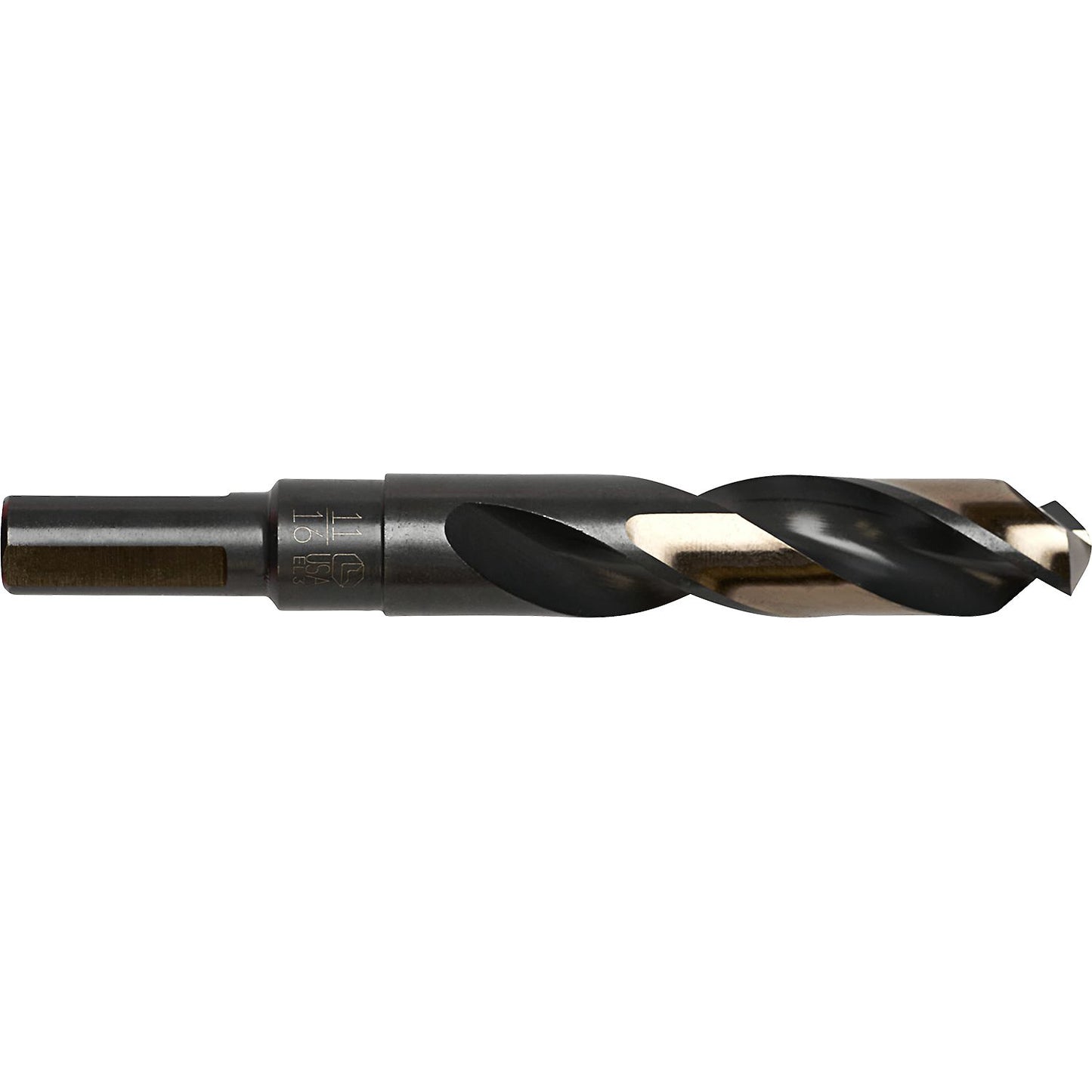

Silver and Deming Drill Bit, High Speed Steel, Gold and Black Finish, 135° Split Point, 1/2" Shank, 11/16 x 5"
(Pack of
1)
SKU:9742 Item#: 9742
• 135° and 118° split point
• 1/2" shank
• Shorter overall length
• Three positive driving flats on shank
• Designed for easier hand drilling
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
Catalog page#: 11-13
Frequently Bought Together
Jobber Length Drill Bit HSS 17/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 15/64"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Maroon
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/8"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Silver and Deming Drill Bit Set 8Pcs
Couldn't load pickup availability
Cryoboost 9/16" Reduced Shank, Stepped Split Point
Couldn't load pickup availability
Silver and Deming Drill Bit HSS 45/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/32"
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/16"
Couldn't load pickup availability
Product Description
• 135° and 118° split point• 1/2" shank
• Shorter overall length
• Three positive driving flats on shank
• Designed for easier hand drilling
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 9742 |
|---|---|
| Drill Length | Silver & Deming |
| Drill Type | Fractional |
| Type | General Purpose |
| Material | High Speed Steel |
| Finish | Gold & Black |
| Diameter | 11/16 " |
| Decimal Equivalent | 0.6875 " |
| Point | 135° Split |
| Shank Size | 1/2 " |
| Flute Length | 3 " |
| Flats | 3 |
| Overall Length | 5 " |
| SAE Code | TD9CWS 0.6875 H3D02 |
| UNSPSC #: | 23241636 |
| TAA Compliant: | Yes |
| Weight: | 0.36 lb |
