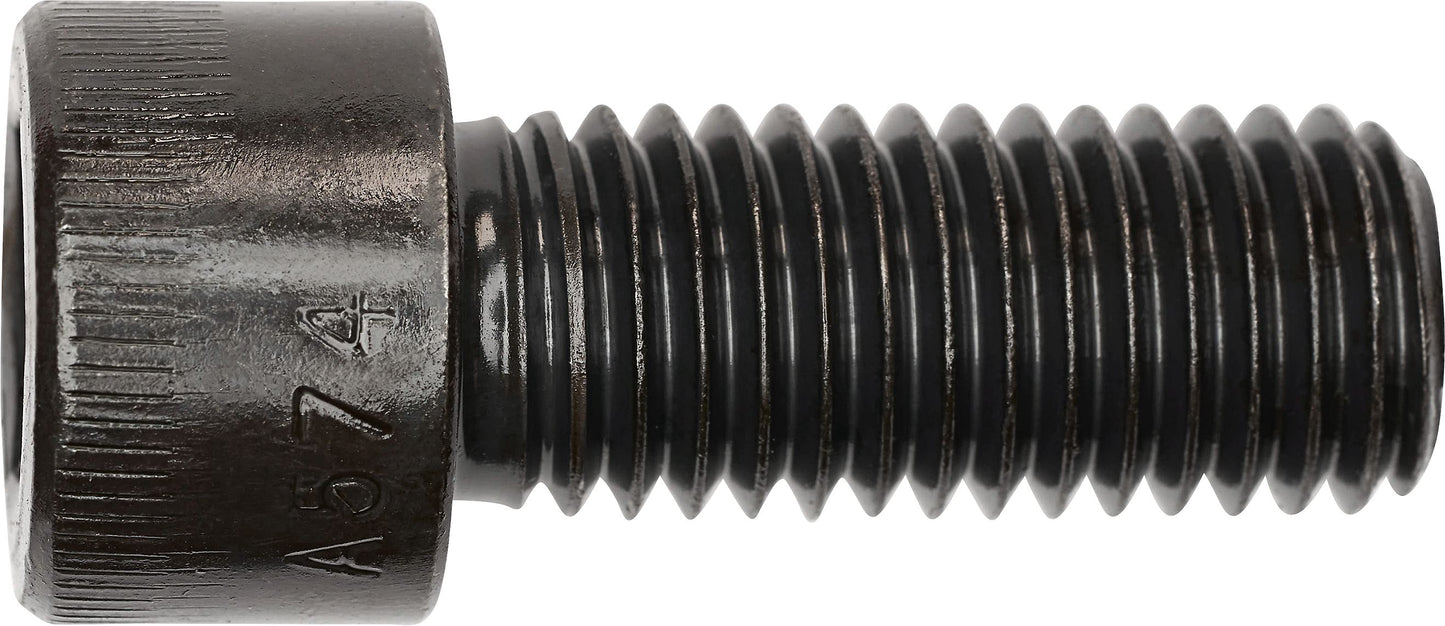

Socket Head Cap Screw, Alloy Steel, Premium Black Oxide Finish, Coarse Thread, 1/2" Hex Key, 5/8-11 x 1-1/2"
(Pack of
10)
SKU:3562 Item#: 3562
• Full product traceability

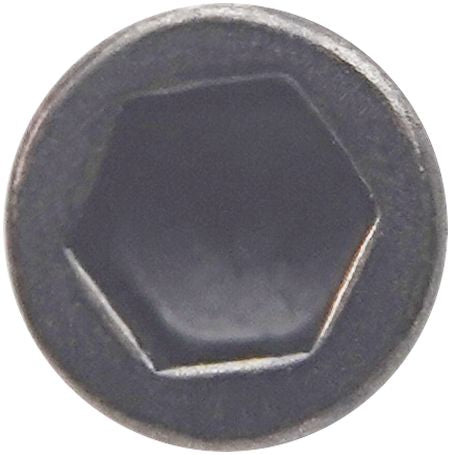

• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Couldn't load pickup availability
Catalog page#: 4-3
Frequently Bought Together
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel 5/16-18 x 3/4"
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M6-1 x 25mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M12-1.75 x 25mm
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel 1/2-13 x 2"
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M10-1.5 x 35mm
Couldn't load pickup availability
Button Head Socket Cap Screw Steel M6-1 x 16mm
Couldn't load pickup availability
Product Description
• Full product traceability• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Technical Specifications
| Item#: | 3562 |
|---|---|
| Diameter | 5/8 " |
| Thread Pitch | 11 |
| Length | 1-1/2 " |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Head Style | Socket |
| Tensile Strength | 170,000 PSI |
| Thread | Coarse |
| Type | Socket Head Cap Screw |
| Key Size | 1/2 " |
| Drive | Hex |
| Size | 5/8-11X1-1/2 |
| UNSPSC #: | 31161518 |
| TAA Compliant: | Yes |
| Weight: | 2.0 lb |
