Socket Terminal for Power Connector, 22 to 18 AWG, 12 Amps, 250 Volts, Brass, Tin Plated
(Pack of
50)
• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.
Couldn't load pickup availability
Frequently Bought Together
MINI Fuse 30A Green
Couldn't load pickup availability
MINI Fuse 10A Red
Couldn't load pickup availability
Flashlight with Continuity Tester
Couldn't load pickup availability

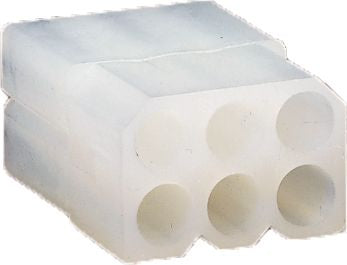

Power Connector Housing 6-Wire Receptacle
Couldn't load pickup availability
Socket Terminal 30 to 24 AWG
Couldn't load pickup availability
Socket Terminal 22 to 18 AWG
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Male Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
• Tin-plated brass terminals• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.
Technical Specifications
| Item#: | 1145864 |
|---|---|
| Type | Socket |
| Wire Gauge | 22-18 AWG |
| Maximum Voltage | 250 V |
| Approvals | UL recognized File No. E-29179 and CSA certified, File No. LR-19980 |
| Description | Socket 22 to 18 Gauge |
| Style | Pin and Socket Power Connector Terminals |
| UNSPSC #: | 39121432 |
| TAA Compliant: | No |
| Weight: | 0.04 lb |
Product Restrictions
