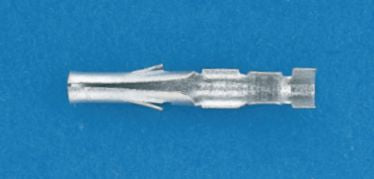

Socket Terminal 22 to 18 AWG
(Pack of
10)
• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.
Frequently Bought Together
Nylon Cable Tie 6" Black
Couldn't load pickup availability
Energizer® AA Alkaline Battery 1.5V
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Power Connector Housing 12-Wire Plug
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Male Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Tin-plated brass terminals• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.
Technical Specifications
| Item#: | 98789 |
|---|---|
| Type | Socket |
| Wire Gauge | 22-18 AWG |
| Maximum Voltage | 250 V |
| Approvals | UL recognized File No. E-29179 and CSA certified, File No. LR-19980 |
| Description | 22 to 18 Gauge |
| Style | Pin and Socket Power Connector Terminals |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.015 lb |
