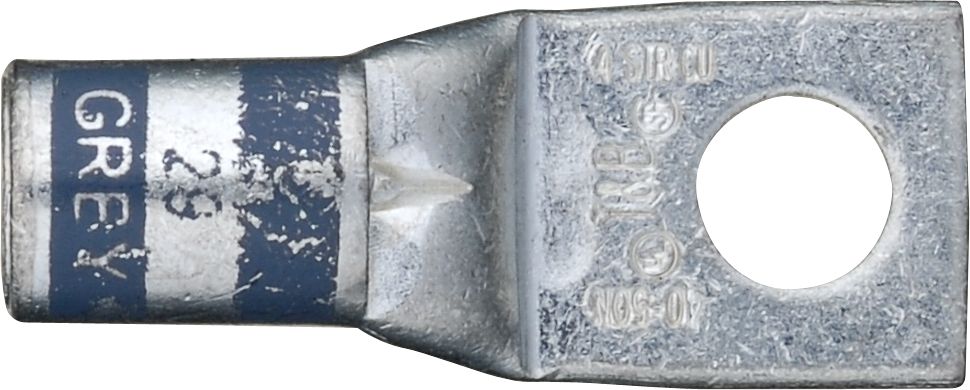

Standard One-Hole Lug, 4 AWG, Gray, 1/4" Stud Size
(Pack of
12)
SKU:89502 Item#: 89502
• Extruded tubular copper for extremely high electrical conductivity
• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Couldn't load pickup availability
Catalog page#: 17-76
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Cone Screw Lug 4 to 2/0 AWG
Couldn't load pickup availability
Long Barrel Compression 2-Way Connector 4/0 AWG
Couldn't load pickup availability
Long Barrel Two-Hole Lug 2/0 AWG Black
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Clear
Couldn't load pickup availability
Product Description
• Extruded tubular copper for extremely high electrical conductivity• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Technical Specifications
| Item#: | 89502 |
|---|---|
| Type | One-Hole Lug |
| Wire Gauge | 4 AWG |
| Size Navy | 40-50 |
| Size Weld | 4 |
| Stud Bolt Size NEMA Drilling | 1/4 " |
| Color | Gray |
| Installation Tool 86473 (No. of Crimps Required) | 1 |
| Installation Tool 89555 (No. of Crimps Required) | 1 |
| Style | Color-Coded |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.25 lb |
