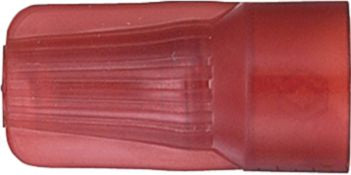

Sure-Lok Wire Connector, 22 to 8 AWG, 600/1000 Volts, Red
(Pack of
100)
• No pre-twisting of wires
• Special “wedge-edge” spring cuts grooves into the wires
• Resists loosening from vibration
• Rated 600V maximum at 221°F (105°C); 1,000V maximum in signs, fixtures and luminaries• Operating temperature range: –40°F to +221°F (–40°C to +105°C)
• Covers all splicing needs for 24 Ga. through 6 Ga. wire
• Can be reused for solid and stranded copper wires
• Can be used with two or more wires
• Easier to use for overhead splicing and difficult applications where space is a problem
• Can be used in circuits that need to be changed frequently without taping
Frequently Bought Together
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
Energizer® AA Alkaline Battery 1.5V
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Step-Down Butt Connector 12 to 10/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 26 to 22 AWG
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
High Temperature Wire Connector 22 to 14 AWG
Couldn't load pickup availability
Fork Pigtail Connector 12 AWG Black
Couldn't load pickup availability
Cushion-Grip Wire Connector Orange/Blue
Couldn't load pickup availability
Watertight Wire Nuts
Couldn't load pickup availability
Cushion-Grip Wire Connector Blue/Gray
Couldn't load pickup availability
High Temperature Wire Connector 22 to 14 AWG
Couldn't load pickup availability
Product Description
• No pre-twisting of wires• Special “wedge-edge” spring cuts grooves into the wires
• Resists loosening from vibration
• Rated 600V maximum at 221°F (105°C); 1,000V maximum in signs, fixtures and luminaries• Operating temperature range: –40°F to +221°F (–40°C to +105°C)
• Covers all splicing needs for 24 Ga. through 6 Ga. wire
• Can be reused for solid and stranded copper wires
• Can be used with two or more wires
• Easier to use for overhead splicing and difficult applications where space is a problem
• Can be used in circuits that need to be changed frequently without taping
Technical Specifications
| Item#: | P35117 |
|---|---|
| Wire Gauge | 22-8 AWG |
| Voltage Rating | 600V Maximum for Building Wire 1,000V Maximum in Signs and Fixtures |
| Color | Red |
| Temperature Range | -40 to 221 F |
| Celcius Temperature Range | -40 to 105 C |
| Approvals | UL, CSA |
| Style | Sure-Lok Wire Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.72 lb |
Product Restrictions
