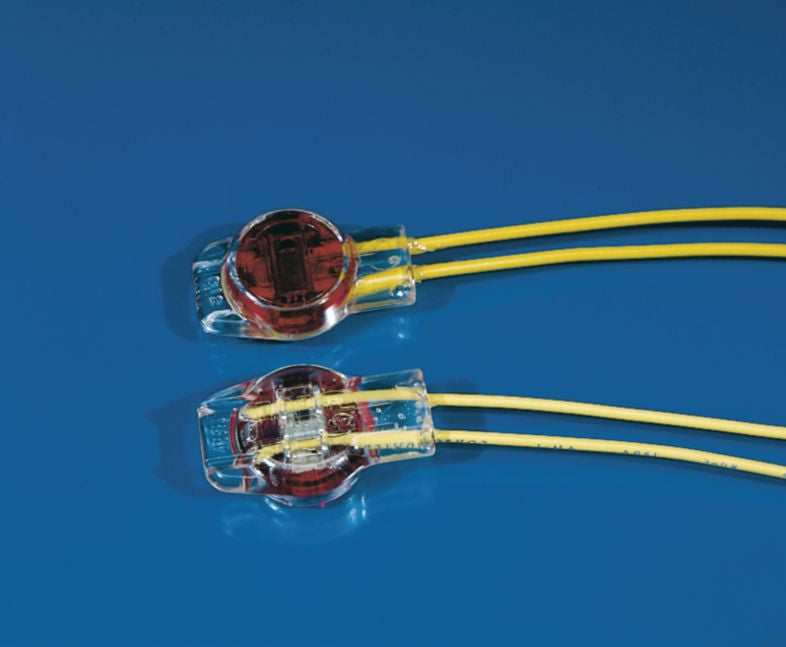

Telcom IDC Discrete Connector, 26 to 19 AWG, Red/Clear, 2 or 3-Wire Butt
(Pack of
50)
SKU:93072 Item#: 93072
• Filled with a corrosion-resistant sealant that resists moisture to protect the integrity of each connection
• Clear body allows visual inspection of the connection
• Compact design makes high-density wiring easier
• Color-coded translucent caps for fast identification
• The solid, tin-plated copper U-element clamps down on the wire, cuts through the insulation and tightly grips the conductor
• Simple installation
• Provides a gas-tight connection
• Low electrical contact resistance
• Originally designed for the telecommunication industry, these U-element connectors have become very popular in other industries because of their high reliability, compact design and moisture resistance
*Insulation Displacement ConnectorNOTE: While initial tests show these connectors work equally well with stranded wire in these ranges, each application should be tested by the user for suitability.
Frequently Bought Together
Cable Tie 14.19" Black
Couldn't load pickup availability
Rechargeable Penlight Flashlight
Couldn't load pickup availability
MINI Fuse 30A Green
Couldn't load pickup availability
IDC Pigtail Connector 22 to 14 AWG
Couldn't load pickup availability
Scotchlok Instant Auto-Electrical Connector
Couldn't load pickup availability
IDC Pigtail Connector 22 to 14 AWG
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/8-18 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 9 Alloy Steel 3/4-16 x 3"
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 80mm
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Clear
Couldn't load pickup availability
Male Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
Product Description
• Filled with a corrosion-resistant sealant that resists moisture to protect the integrity of each connection• Clear body allows visual inspection of the connection
• Compact design makes high-density wiring easier
• Color-coded translucent caps for fast identification
• The solid, tin-plated copper U-element clamps down on the wire, cuts through the insulation and tightly grips the conductor
• Simple installation
• Provides a gas-tight connection
• Low electrical contact resistance
• Originally designed for the telecommunication industry, these U-element connectors have become very popular in other industries because of their high reliability, compact design and moisture resistance
*Insulation Displacement ConnectorNOTE: While initial tests show these connectors work equally well with stranded wire in these ranges, each application should be tested by the user for suitability.
Technical Specifications
| Item#: | 93072 |
|---|---|
| Style | Telcomm IDC Discrete Connectors |
| Wire Gauge | 26-19 AWG |
| Color | Red/Clear |
| Maximum Insulation O.D. | 0.066 " |
| Connector Type | 2 or 3 Wire Butt |
| Industry Number | UR |
| Type | Electrical Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
