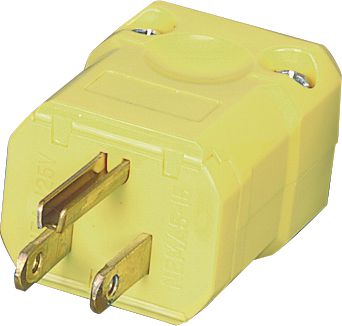

Thermoplastic Plug, 15 Amps, 125 Volts, Yellow, 0.25 to 0.65" Cord Diameter, NEMA 5-15P
(Pack of
1)
SKU:58873 Item#: 58873
• Triple-drive screws – slotted, Phillips and square drive – for easy wiring
• Clear thermoplastic back terminal cover allows visual inspection of terminal wells
• Internal rib design locks the two external walls to the front module for a secure, Uni-Tight construction
• Rugged thermoplastic construction designed to stand up to rough-duty applications across a wide range of indoor and outdoor environments
• Wide cord clamp range (0.250" – 0.650") with removable inserts that accommodate a wide range of cord sizes (18/3 SVT – 10/3 SO) with or without inserts
• High-visibility yellow
• 15A-125V
• Suitable for a wide range of commercial, institutional and industrial applications where a quick, cost-effective way to connect equipment, machinery and lighting to power sources is needed
Frequently Bought Together
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
MINI Fuse 15A Blue
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
Couldn't load pickup availability
Locking Connector 2 Pole 3 Wire 20A 125V
Couldn't load pickup availability
Weather Protected Plug Boot 2 Pole 3 Wire 30A 250V
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Rocker Switch SPST 25A 12VDC Off-On
Couldn't load pickup availability
Industrial Duty Plug 2 Pole 3 Wire 20A 125V
Couldn't load pickup availability
Universal School Bus Switch SPST 36VDC
Couldn't load pickup availability
Product Description
• Triple-drive screws – slotted, Phillips and square drive – for easy wiring• Clear thermoplastic back terminal cover allows visual inspection of terminal wells
• Internal rib design locks the two external walls to the front module for a secure, Uni-Tight construction
• Rugged thermoplastic construction designed to stand up to rough-duty applications across a wide range of indoor and outdoor environments
• Wide cord clamp range (0.250" – 0.650") with removable inserts that accommodate a wide range of cord sizes (18/3 SVT – 10/3 SO) with or without inserts
• High-visibility yellow
• 15A-125V
• Suitable for a wide range of commercial, institutional and industrial applications where a quick, cost-effective way to connect equipment, machinery and lighting to power sources is needed
Technical Specifications
| Item#: | 58873 |
|---|---|
| Style | Easy Hinge Plugs and Connectors |
| Volts | 125 |
| Description | Plug |
| NEMA Configuration | 5-15P |
| Cord Diameter | 0.250 - 0.650 " |
| Color | Yellow |
| Approvals | UL, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.12 lb |
