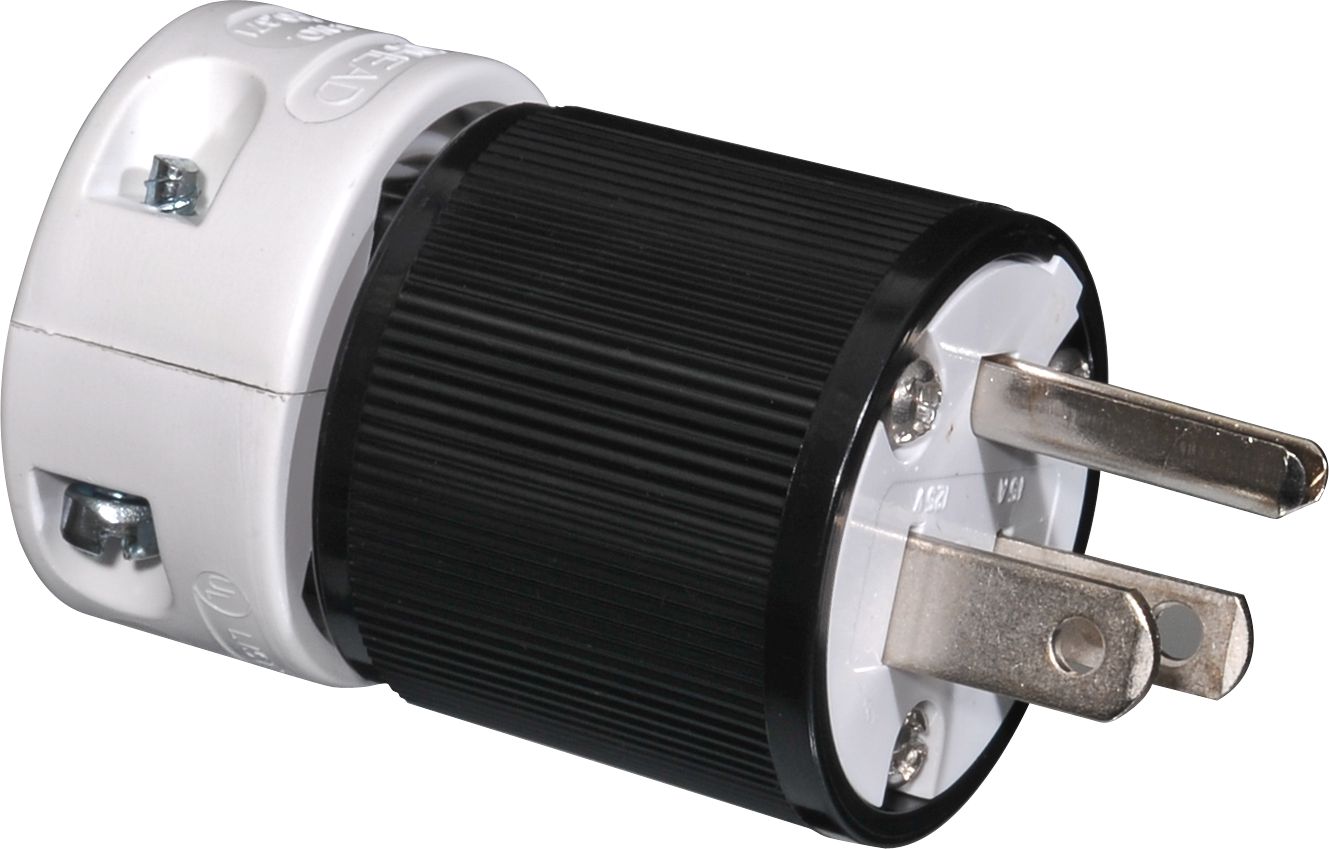

Thermoplastic Plug, 2-Pole, 3-Wire, 15 Amps, 125 Volts, 0.335 to 0.64" Cord Diameter, NEMA 5-15P
(Pack of
1)
SKU:92059 Item#: 92059
• 2 pole, 3 wire
• High-impact nylon housing with excellent thermal insulating and dielectric properties and high resistance to oils and chemicals
• Safe deadfront design – completely backwired
• Quick-turning recessed captive assembly screws and keyed design for fast, easy assembly
• Self-aligning, floating blades provide more positive contact with female connector than rigid blades – fully secured in accordance with OSHA and National Electrical Code requirements
• Double-polarized NEMA 5-15 plugs
• Use on laboratory apparatus, electronic testing devices, broadcasting equipment, office copiers, word processors, data processing equipment, duplicating equipment and vending machines
Couldn't load pickup availability
Catalog page#: 17-87
Frequently Bought Together
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Energizer® AA Alkaline Battery 1.5V
Couldn't load pickup availability
Industrial Duty Locking Plug 2-Pole 3-Wire 20A
Couldn't load pickup availability
Industrial Duty SAF-T Connect Connector 20A 125V
Couldn't load pickup availability
Locking Connector 2 Pole 3 Wire 20A 250V
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Rocker Switch SPST 20A 12V On-Amber/Off-Clear
Couldn't load pickup availability
Thermoplastic Plug 2 Pole 3 Wire 15A 125V
Couldn't load pickup availability
Universal Pilot Indicator Light 12V 2x 16 AWG
Couldn't load pickup availability
Product Description
• 2 pole, 3 wire• High-impact nylon housing with excellent thermal insulating and dielectric properties and high resistance to oils and chemicals
• Safe deadfront design – completely backwired
• Quick-turning recessed captive assembly screws and keyed design for fast, easy assembly
• Self-aligning, floating blades provide more positive contact with female connector than rigid blades – fully secured in accordance with OSHA and National Electrical Code requirements
• Double-polarized NEMA 5-15 plugs
• Use on laboratory apparatus, electronic testing devices, broadcasting equipment, office copiers, word processors, data processing equipment, duplicating equipment and vending machines
Technical Specifications
| Item#: | 92059 |
|---|---|
| Style | Thermoplastic Plug and Connector |
| Volts | 125 |
| Description | Plug |
| NEMA Configuration | 5-15P |
| Cord Diameter | 0.335 - 0.640 " |
| Approvals | UL, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
